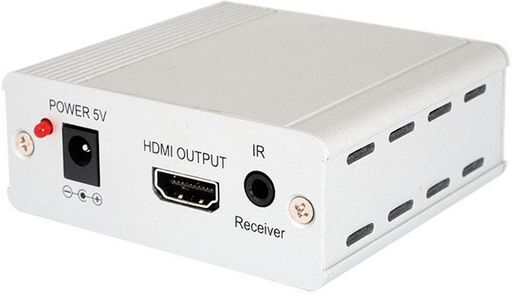

HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC WITH IR - CYPRESS
UP TO 45M WITH IR REMOTE CONTROL RETURN
SKU code: WES_CH-1106RXN_1
This is a HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC WITH IR - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC WITH IR - CYPRESS |
| Notes | UP TO 45M WITH IR REMOTE CONTROL RETURN The HDMI 1.3 transmitter and receiver is one of the most economical way to send your HDMI signal up to 45m. Instead of using expensive HDMI cables, this device lets you use CAT 6 cables pair allowing the same functions like transferring Deep Colour (12 bits/colour) video and lossless compressed (Dolby® True HD, Dolby® Digital Plus and DTS-HD Master Audio) digital audio, all with a bandwidth up to 225MHz. Also allows you to use your existing remote to control your device. Supports video resolution up to 1080p.Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.0 standards. Deep Colour Mode at up to 36 bits (12 bits/colour). Dolby® True HD, Dolby® Digital Plus and DTS-HD Master Digital audio.Supports CAT-6 cables for data/DDC transmission. Equalises and recovers incoming TMDS data before re-transmitting it in high quality.Supports CEC bypass and xvYCC.Cable distance 1080p/8 bits resolution up to 45 metres Cable distance 1080p/12 bits resolution up to 20 metresIncludes power packs and IR Sender & Receiver modules Compatible Dual CAT6 Transmitter & Splitters: CLUX-1H4CAT and CLUX-1H8CAT Compatible Transmitter & Matrix Switches: CMLUX-4H4CAT and CMSI-8H8HC |
| Description | HDMI over Dual CAT5e/6/7 Receiver |
| Max. | 45M/8Bit or 15M/12Bit |
| Input | Dual CAT6 |
| Output | 1x HDMI |
| IR | Yes |
| Interface | Receiver |
| Compliance | HDMI V1.3 |
| CEC | Yes |
| EDID | - |
| HDCP | Yes |
| Max Res. | 1080p |
| Compatible with | CH-1106TX |
| 4K | - |
| HDMI Input | 1 |
| HDMI Output | 1 |
| Extension Cables | 1 Dual |
| Page | 28 |
| Cable Length | 45M @ 8-bit, 20M @ 12-bit |
| Manufacturer | Cypress |
| Cable | Dual CAT6/7 |
| Device Type | RX Adaptor |
| 3D | Yes |
| SKU No | WES_CH-1106RXN_1 |
