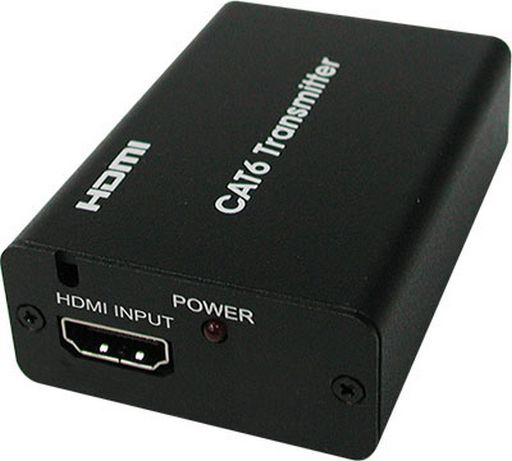

HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC - CYPRESS
UP TO 45M WITH DDC - DISPLAY DATA CHANNEL RETURN
SKU code: WES_CH-1103TX_1
This is a HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI OVER DUAL-CAT6 EXTENDER SYSTEM 1080P DDC - CYPRESS |
| Notes | UP TO 45M WITH DDC - DISPLAY DATA CHANNEL RETURN This HDMI to CAT6 transmitter (Tx) and receiver (Rx) kit can extend HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, supports up to 15 metres transfer of Deep Colour 12 bit video and up to 45M in 8 bit colour. Supports lossless compressed (Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. Easy to install. Supports video resolution at up to 1080p. Power is inserted at the transmitter then to all receivers are PoC compatible.Transmitters are available with either external power-pack, or are powered by the HDMI signal. PoC (Power Over Cable).Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards, CEC bypassSupports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) Supports lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audioRequires two CAT-6 cables for AV data & DDC returnTMDS data rebuild before re-transmitting them with optimal quality regardless of the incoming signal quality1080p/8bits resolution can run up to 45 meters1080p/12bits resolution can run up to 15 meters Compatible Dual CAT6 Splitters: CLUX-1H4CAT and CLUX-1H8CAT Compatible Matrix Switches: CMLUX-4H4CAT and CMSI-8H8HC |
| Description | HDMI over Dual CAT6/7 Transmitter |
| Interface | Transmitter |
| Power | HDMI |
| Input | 1x HDMI |
| Output | Dual CAT6 |
| Cable Length | 45M @ 8-bit, 15M @ 12-bit |
| Cable | Dual CAT6/7 |
| 3D | Yes |
| HDCP | Yes |
| 4K | - |
| Max Res. | 1080p |
| Ethernet | - |
| HD Audio | Yes |
| Deep Colour | Yes |
| Manufacturer | Cypress |
| Compliance | HDMI V1.3 |
| SKU No | WES_CH-1103TX_1 |
