.HDMI OVER CAT5e/6/7 EXTENDER WITH 48V POE
.HDMI OVER CAT5e/6/7 EXTENDER WITH 48V POE
SKU code: WES_CH-1507RX_1

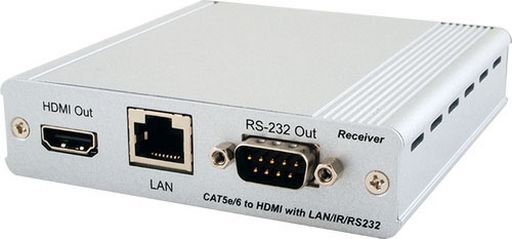

This is a .HDMI OVER CAT5e/6/7 EXTENDER WITH 48V POE of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | .HDMI OVER CAT5e/6/7 EXTENDER WITH 48V POE |
| Notes | The CH-1507 transmitter and receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 metres. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Receiver (PD) can be powered by the PoE (48V) function of the transmitter (PSE), allowing for greater flexibility in installations.HDMI with 3D, 4K2K support, HDCP and DVI compliantSimultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ftHDBaseT 5Play™ convergence: uncompressed high definition Video and Audio, LAN serving, Power over Ethernet and RS-232/IR controlsUncompressed video support up to 1080p@60 Hz/36-bitHigh definition audio support up to LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master AudioSupports audio sampling rates of 32 kHz to 192 kHzSupports standard 48V power from Transmitter (PSE) to Receiver (PD)Supports CEC bypassInstallation friendly |
| Description | HDBaseT HDMI Receiver over CAT5/6/7 with 48V PoE |
| Type | Receiver |
| Input | 1x CAT5e/6/7 |
| Output | 1x HDMI |
| IR | Yes |
| Cable Length | 100M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4Kx2K |
| Extender Cable | CAT5e/6/7 |
| Manufacturer | Cypress |
| SKU No | WES_CH-1507RX_1 |
