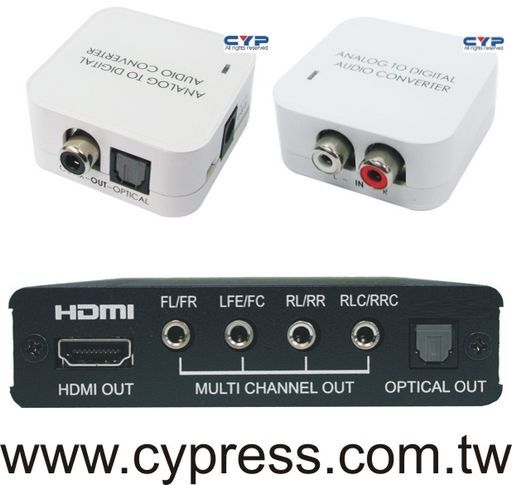

HDMI HD 1080P AUDIO DECODER 8CH
LPCM 7.1 ANALOGUE OUT & SPDIF DIGITAL OUT
SKU code: WES_CLUX-11SA_1
This is a HDMI HD 1080P AUDIO DECODER 8CH of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI HD 1080P AUDIO DECODER 8CH |
| Notes | LPCM 7.1 ANALOGUE OUT & SPDIF DIGITAL OUT HDMI V1.3 Repeater/Extender Transfers deep Colour 12Bit High bandwidth up to 225MHz. The SPDIF Optical output extracts digital audio formats LPCM 2CH, Dolby Digital 2CH to 5.1CH, and DTS 2CH to 5.1CH. The multi-channel phone jack outputs support analog audio from 2CH to 7.1CH converted from the input LPCM signal. Compact metal box 100x150x25mmHDMI, HDCP 1.1 and DVI 1.0 compliantSupports digital video formats in Deep Colour Mode from 25 MHz to 225 MHz for 36-bit (12-bit/colour)Supports high definition input up to 1080p@60 Hz/24-bit, output resolution follows inputSupports HDMI signal amplification and equalization output for repeater functionSupports uncompressed digital LPCM 2/5.1/7.1 channels and compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) through HDMI input and output portsSupports digital Dolby 2/5.1 and LPCM 2 channels output through optical audio output portSupports LPCM 2/5.1/7.1 signal converted to analog signal and output through multi-channel output portsIntegrated HDCP encryption for transmitting protected audio and video contentSupports CEC bypassSupports HDMI cable distances up to 20 metres at 1080p (8-bit) and 15 metres at 1080p (12-bit) resolution for the input and 15 metres at 1080p (8-bit) or 10 metres at 1080p (12-bit) resolution for the output www.cypress.com.tw |
| Description | HDMI Audio Decoder (dd) 1080P 7.1CH |
| Input | 1xHDMI |
| Output | HDMI x1 / 3.5mm x4 / Optical |
| Manufacturer | Cypress |
| HDMI Input | 1 |
| HDMI Output | 1 |
| TOSLink Output | 1 |
| Size | 100x147x25mm |
| Page | 36 |
| 3.5mmTRS Output | 4 |
| Power | 5V 2.6A |
| Input Audio Formats | DTS Dolby LPCM (All) |
| Output Audio Formats | SPDIF (2.0CH) & Analogue 3.5mm (8CH) |
| SKU No | WES_CLUX-11SA_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_CLUX-11SA_1 |
| Brand | Cypress |
