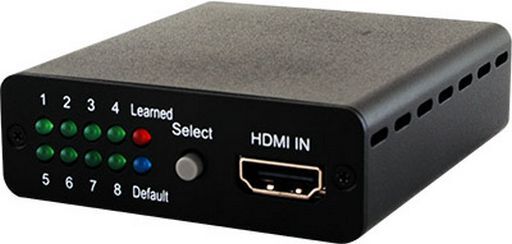

HDMI EDID EMULATOR 1080P/4K - CYPRESS
TRUE HD 1080p UP TO 4K30Hz 10Gbps
SKU code: WES_CED-1M_2
This is a HDMI EDID EMULATOR 1080P/4K - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI EDID EMULATOR 1080P/4K - CYPRESS |
| Notes | TRUE HD 1080p UP TO 4K30Hz 10Gbps The CED-1M is designed to allow the adjustment of HDMI/DVI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal. Aiming to simplify the technical complications involved in video/audio system integration, home theatre installation, video/audio equipment testing and experimentation, the unit’s learning function allows the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes. Compliant with HDMI and DVI 1.0 standards. Supports high video bandwidth up to 340MHz/10.2Gbps and video resolution up to 4K @ 30Hz.Compliant with HDMI and DVI 1.0 standardsSupports the following HDMI features:- High video bandwidth up to 340MHz/10.2Gbps- Resolutions up to 1080p@60Hz and 4K2K@24/30Hz- 36-bit Deep Colour- LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio (Sampling rates from 32kHz to 192kHz)Supports four different EDID Modes:- Read Mode: Reads the TV/display’s EDID information- Write Mode: Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function)- Emulator Mode: Allows the source device to read the selected EDID information from the unit’s default or learned EDID memory- Bypass Mode: Allows the source device to read the EDID information from the TV/display directlySupports 8 sets of default EDIDSupports DVI source by using HDMI to DVI adaptorSupports CEC and EDID pass-throughSupports being powered by USB or HDMI input |
| Input | 1x HDMI |
| Output | 1x HDMI |
| Software | Yes |
| Supported TV Resolutions | 480i-4K@24/25/30Hz |
| Supported PC Resolutions | - |
| Power management | - |
| CEC Management | - |
| EDID Management | Yes |
| Max Res. | 4K @ 30Hz |
| Manufacturer | Cypress |
| SKU No | WES_CED-1M_2 |
