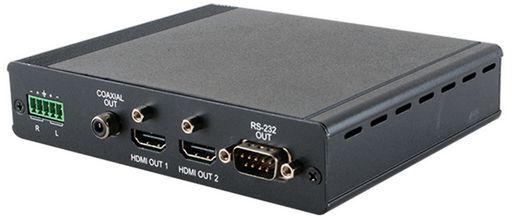

HDMI/AUDIO OVER HDBaseT RECEIVER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS
UP TO 100M WITH DUAL HDMI OUTPUTS, SPDIF, BALANCED AUDIO
SKU code: WES_CH-526RXPL_1
This is a HDMI/AUDIO OVER HDBaseT RECEIVER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI/AUDIO OVER HDBaseT RECEIVER 4K30 WITH BIDIRECTIONAL 24V PoC - CYPRESS |
| Notes | UP TO 100M WITH DUAL HDMI OUTPUTS, SPDIF, BALANCED AUDIO This HDMI and Audio over HDBaseT Receiver/Splitter can receive uncompressed audio/video and data over a single run of CAT5e/6/7 cable, from a Transmitter, up to distances of 60m (1080p). It has the added benefit of simultaneous dual HDMI outputs with audio de-embedding to a balanced analogue stereo or digital coaxial audio output. The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations. Supports a wide range of HDTV and PC output resolutions up to 4K2K and WUXGA@60Hz (RB). Receive uncompressed data over a single 100 m CAT5e/6/7 cable from a compatible matrix/transmitter. HDBaseT 5Play™ convergence: High-Definition Video and Audio, 100BaseT Ethernet, PoC and Control (Bidirectional IR/RS-232 pass-through).Supports a wide range of HDTV and PC output resolutions up to 4K2K and WUXGA@60Hz (RB)Receive uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable from a compatible matrix/transmitterHDBaseT 5Play™ convergence: High-Definition Video and Audio, 100BaseT Ethernet, PoC and Control (Bidirectional IR/RS-232 pass-through)Dual LAN connectionsSupports powering or being powered by 24V DC power from compatible PoC Transmitter through CAT5e/6/7 cableSupports Balanced analog audio output (R/L) and HDMI audio input sampling rates up to 192kHzSupports coaxial digital audio output up to 192kHz sampling rate |
| Description | HDBaseT HDMI/Audio Receiver with Bidirectional PoE |
| Input | 1x CAT5e/6/7 |
| Output | 2x HDMI |
| IR | Yes |
| Cable Length | 60M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | - |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Type | Receiver |
| Compatible with | Compatible HDBaseT transmitters |
| Manufacturer | Cypress |
| Extender Cable | CAT5e/6/7 |
| SKU No | WES_CH-526RXPL_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_CH-526RXPL_1 |
| Brand | Cypress |
