HDMI/AUDIO OVER HDBaseT RECEIVER 4K30 WITH BIDIRECTIONAL 24V PoC & IP x2 - CYPRESS
UP TO 100M WITH DUAL HDMI / DUAL LAN OUTPUTS, IR, SPDIF
SKU code: WES_CH-526RX_1
This is a HDMI/AUDIO OVER HDBaseT RECEIVER 4K30 WITH BIDIRECTIONAL 24V PoC & IP x2 - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HDMI/AUDIO OVER HDBaseT RECEIVER 4K30 WITH BIDIRECTIONAL 24V PoC & IP x2 - CYPRESS |

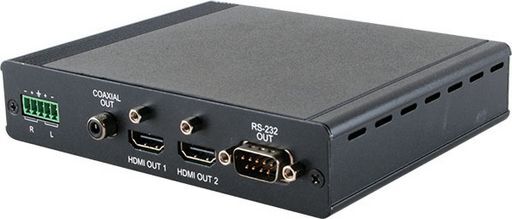

| Notes | UP TO 100M WITH DUAL HDMI / DUAL LAN OUTPUTS, IR, SPDIF This HDMI and Audio over Single CAT5e/6/7 Receiver/Splitter can receive uncompressed audio/video and data over a single run of CAT5e/6/7 cable, from a Transmitter, up to distances of 100m (1080p). It has the added benefit of simultaneous dual HDMI outputs with audio de-embedding to a balanced analogue stereo or digital coaxial audio output and 2 bidirectional LAN serving connections, allowing devices such as Smart TVs or game consoles to share a Internet connection. The unit has a bidirectional PoC (Power over Cable) function that can power or be powered by a compatible transmitter allowing for greater flexibility in installations. Supports a wide range of HDTV and PC output resolutions up to 4K2K and WUXGA@60Hz (RB). Receive uncompressed data over a single 100m CAT5e/6/7 cable from a compatible matrix/transmitter.Supports a wide range of HDTV and PC output resolutions up to 4K2K and WUXGA@60Hz (RB)Receive uncompressed data over a single 100 m/328 ft CAT5e/6/7 cable from a compatible matrix/transmitterHDBaseT 5Play™ convergence: High-Definition Video and Audio, 100BaseT Ethernet, PoC and Control (Bidirectional IR/RS-232 pass-through)Dual LAN connectionsSupports powering or being powered by 24V DC power from compatible PoC Transmitter through CAT5e/6/7 cableSupports Ethernet transmission rates up to 100MbpsSupports Balanced analog audio output (R/L) and HDMI audio input sampling rates up to 192kHzSupports coaxial digital audio output up to 192kHz sampling rate |
| Description | HDBaseT HDMI/Audio Receiver with Bidirectional PoE |
| Input | 1x CAT5e/6/7 |
| Output | 2x HDMI |
| IR | Yes |
| Cable Length | 100M (@ 1080p) |
| 3D | Yes |
| HDCP | Yes |
| PoE | Yes |
| Ethernet | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| Max Res. | 4K @ 30Hz |
| Type | Receiver |
| Compatible with | Compatible HDBaseT transmitters |
| Manufacturer | Cypress |
| Extender Cable | CAT5e/6/7 |
| Brand. | Cypress |
| SKU No | WES_CH-526RX_1 |
