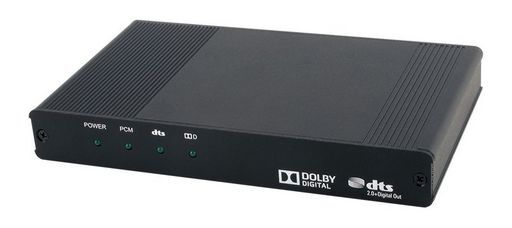

This is a HDMI 4K30 AUDIO EXTRACTOR DTS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title HDMI 4K30 AUDIO EXTRACTOR DTS
Notes DOLBY DIGITAL & DTS COMPATIBLE 2CH DECODER The HDMI Audio Converter with Dolby Digital / DTS 2.0+Digital Out Decoder allows the audio signal from an HDMI input to be de-embedded, downmixed and simultaneously output to both digital (optical or coaxial) and analog audio outputs. This unit allows you to utilize an additional audio output such as an AV receiver or set of active speakers, or to further extend the audio signal pathway.Dolby Digital Decoder technology embeddedDTS 2.0+Digital Out Decoder technology embeddedIntegrated digital interpolator filter and Digital-to-Analog Converter (DAC)Supports LPCM input sampling rate up to 96kHz and 2-CH output at 48kHzSupport Dolby® Digital/DTS® sampling rate up to 48kHzSupports simultaneous audio outputs on HDMI, analog R/L, Coaxial and OpticalHDMI (with 3D & 4K2K supported) and HDCP compliantUp to 4Kx2K (3840x2160@24/25/30, 50/60 YUV420 & 4096x2160@24, 50/60 YUV420)Supports HDMI data rate from 300Mbps to 3Gbps and ‘Deep Colour’ up to 1080p/36-bit
DescriptionHDMI Audio Decoder (dd) 4K60 2.0CH
Input1xHDMI
Input Audio FormatsDTS Dolby LPCM (All)
OutputHDMI Toslink Coax RCAx2
Output Audio FormatsLPCM & Analogue 2CH
Power5V 2.6A
Size180x110x25mm
EDIDNo
ManufacturerCypress
SKU NoWES_CPRO-SE2DD_1
