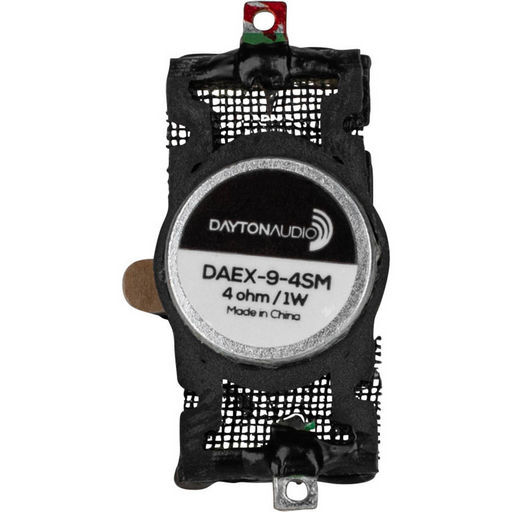

HAPTIC FEEDBACK TRANSDUCER 9MM 1W
DAYTON AUDIO
SKU code: WES_DAEX-9-4SM_2
This is a HAPTIC FEEDBACK TRANSDUCER 9MM 1W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | HAPTIC FEEDBACK TRANSDUCER 9MM 1W |
| Notes | DAYTON AUDIO Dayton Audio's DAEX-9-4SM exciter will allow you to add audio or haptic (tactile) feedback to even the smallest projects. This 9 mm exciter is an ideal option when designing pocket sized personal speakers or for adding audio to small art projects and models. At only 0.5 wide by 1 long, this exciter is even perfect for use in virtual reality haptic feedback systems such as gloves and headsets. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The unique suspension is capable of high physical excursion to allow this extremely small and lightweight exciter to deliver an impressive amount of force while remaining linear. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.Extremely small design can fit almost anywherePerfect for creating haptic (touch) feedback systemsUnique suspension allows high excursion for surprisingly powerful responseRare-earth neodymium motor and a proprietary 9 mm voice coil4-ohm impedance for use with small, Class D amplifiersPre-applied 3M™ VHB™ adhesive for quick, durable installation Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials will be slightly quieter but result in a more full-range sound. |
| Description | Haptic Feedback Transducer 9mm 1W 4 Ohm |
| Coil | 9mmØ |
| Diam. | 13x27mm |
| Dimensions | 6x13x27mm |
| Fs | 1200Hz |
| Height | 6mm |
| Impedance | 4Ω |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.013mH |
| Manufacturer | Dayton Audio |
| Power | 1Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 1W |
| QTY | 1 |
| Re | 3.6Ω |
| Size | 1' |
| Type | Exciter |
| Width | 27mm |
| Zn | 4Ω |
| SKU No | WES_DAEX-9-4SM_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_DAEX-9-4SM_2 |
| Brand | Dayton Audio |
