This is a replacement air filter material. It is suitable for replacing spare parts for Air Conditioners.

SALIN is a leading Australian appliance spare parts distributor specializing in applicances. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our range is genuine.

TECHNICAL SHEET
Title G2 DUCTED AIR CONDITIONING FILTER MATERIAL 950mm x 450mm
BrandUniversal
Replacement ItemAir Filter Material
Suitable ForAir Conditioners
Number in Pack1
Item Length950 mm
Item Width450 mm
Item Thickness5 mm
ColourGrey
Contaminants CapturedDebris, Dust
ApplicationAir Conditioner
Country/Region of ManufactureAustralia
Temperature Resistance100oC Continuous
Fire ResistanceManufactured with a fire retardant resin
Initial Resistance - At rated flow of 1.8 m/s27 Pa
AS1132 No 4 test dust - Average Arrestance75%
Dust Holding No 4 test dust225 g/m2 (per unit of effective face area)
MPNDoes not apply
InstallationBuilt-In/Integrated
Suitable Models✔  Universal
Notes
  • This grey ducted G2 filter material is a washable polyester that meets the Australian standards.
  • Just remove your old dusty material from its frame and insert this new material in its place.
  • The filter material has a nominal thickness of 5 mm.
  • Comes with spline to fit into a gap in the aluminium of 5.5 mm.
  • The spline creates a nice tight fit preventing the material from coming out.
  • Some materials are thicker which may make it very difficult to re-insert back into its frame.

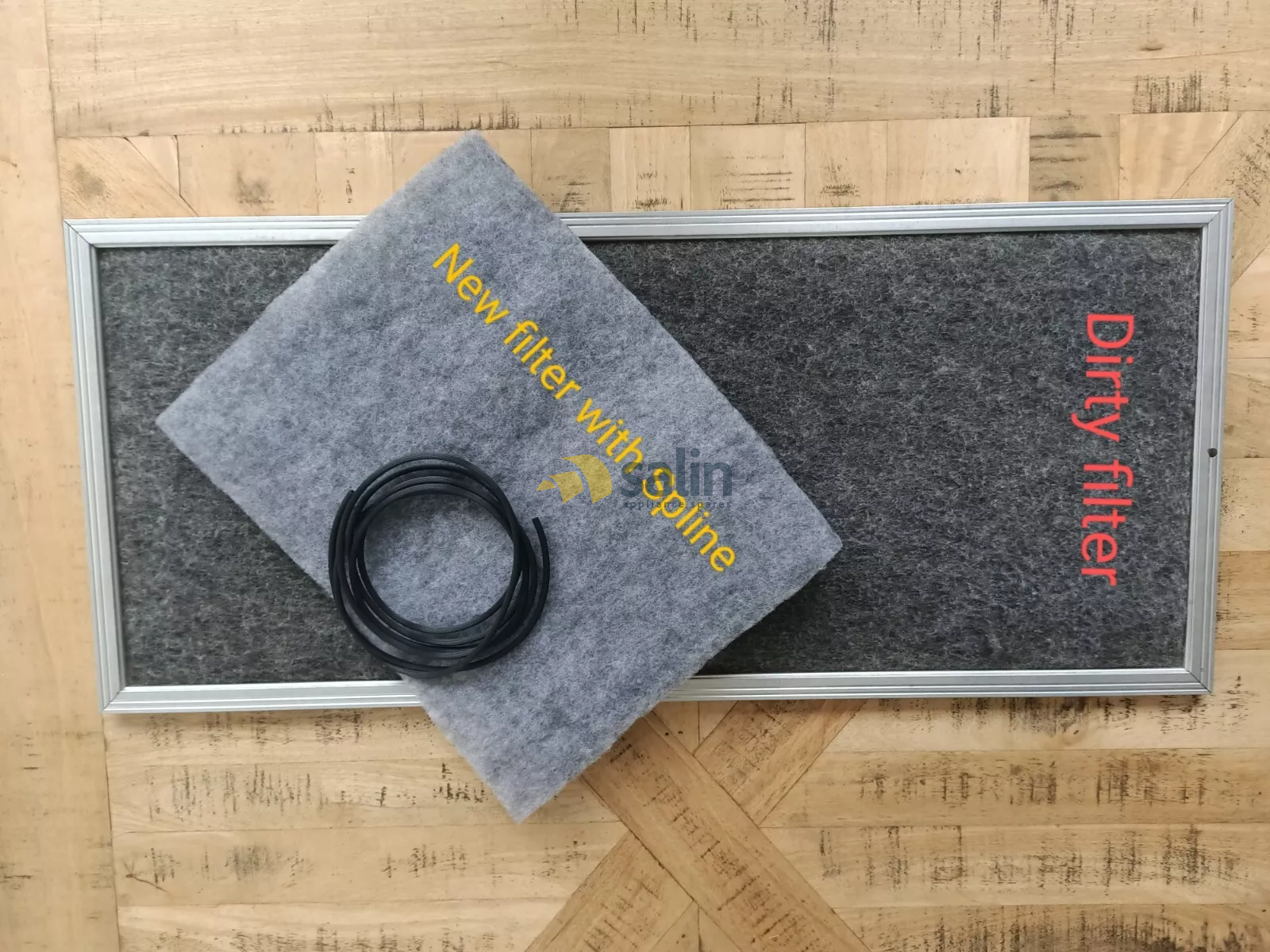

  • Please see photos for more information to clarify what this is referencing to.
  • The polyester fibres are thermally bonded together into an interlocking pattern that traps dust and lint, while minimizing surface loading.
  • Its suitable in applications such as room air conditioning filters, domestic ducted heating and cooling and return air grill filters.
