Evaporator Fan Motor For Kelvinator PNC 925060080 Fridges and Freezers
Brand: Kelvinator | Part No: 811973308
SKU code: FIT_0004638_002_00009

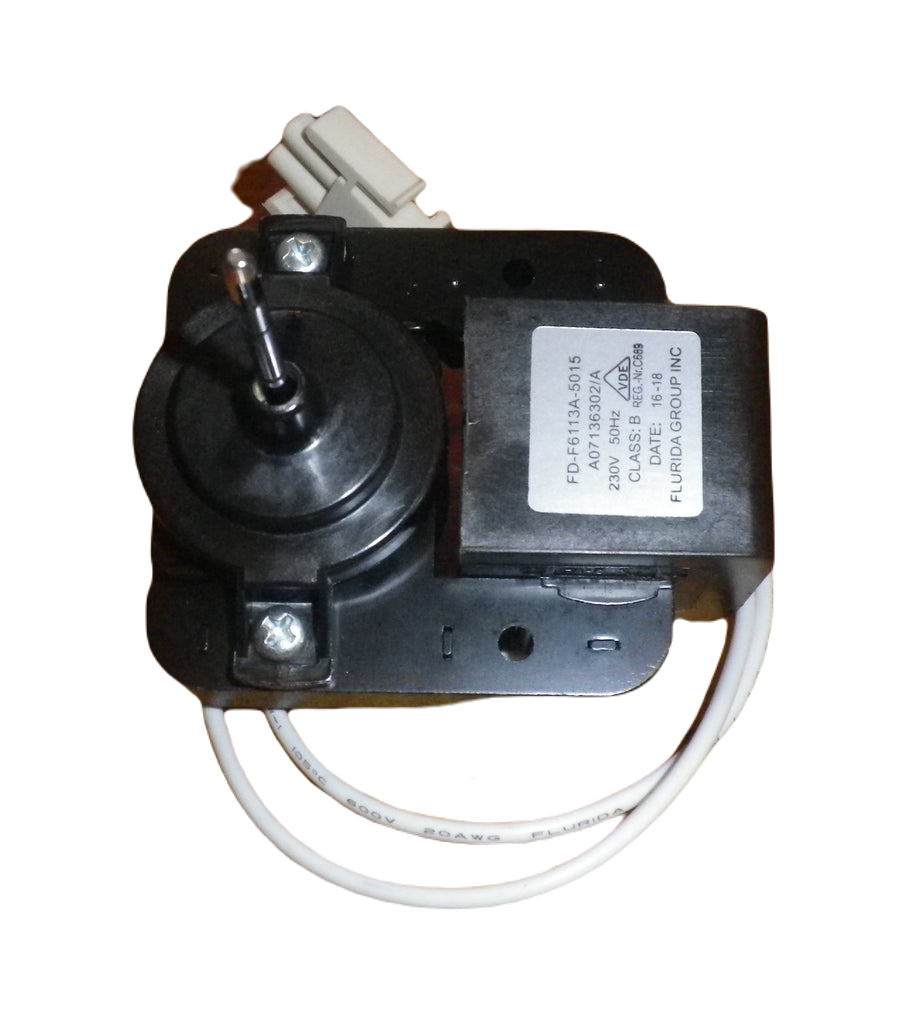

This is a replacement Evaporator Fan Motor. It is suitable for replacing spare parts with 811973308 part number for Kelvinator Fridges and Freezers.
SALIN is a leading Australian appliance spare parts distributor specializing in KELVINATOR applicances. We take pride in our ability to bring hard-to-find KELVINATOR spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our KELVINATOR range is genuine.
| TECHNICAL SHEET | |
|---|---|
| Part No | 811973308 or 140071363026 |
| Notes | Genuine Evaporator Fan Motor to suit many Late Model Westinghouse & Kelvinator No Frost Fridges & Freezers.Part No. 811973308, FD-F6113A-5015, A07136302/A.Small fan motor suitable for some frost free refrigerators & freezers.Suits Kelvinator & Westinghouse models WTB5400WA-R, KTM5402AA-R PNC 925060083, KTM5402WA-R PNC 925060082, KTM4602AA-R PNC 925060081, KTM4602WA-R PNC 925060080, WTB5404SA-LH PNC 925060011, WTB5404SA-RH PNC 925060010, WTB4604SA-LH PNC 925060009, WTB4604SA-RH PNC 925060008, WTB5400SA-LH PNC 925060007, WTB5400SA-RH PNC 925060006, WTB4600SA-LH PNC 925060005, WTB4600SA-RH PNC 925060004, WTB5400WA-L PNC 925060003, WTB5400WA-R PNC 925060002, WTB4600WA-L PNC 925060001, WTB4600WA-R PNC 925060000.230Volts AC.Fitted with 40cm connecting wires with 2pin connector.Shaft length 31.5mm, shaft diameter 3mm, total depth 90mm from tip of shaft to back of mounting knob, thickness of motor from front to back, not including mounting knobs is 41.4mm. Designed to be clamped into a metal or plastic bracket with rubber grommets front and back |
| Title | Evaporator Fan Motor For Kelvinator PNC 925060080 Fridges and Freezers |
| Category | Appliance Spares > Kitchen Appliances > Fridges & Freezers |
| Replacement Item | Evaporator Fan Motor |
| Compatible Brands | ✔ Westinghouse ✔ Kelvinator |
| Suitable Models | ✔ Kelvinator WTB5400WA-R ✔ Kelvinator KTM5402AA-R ✔ Kelvinator PNC 925060083 ✔ Kelvinator KTM5402WA-R ✔ Kelvinator PNC 925060082 ✔ Kelvinator KTM4602AA-R ✔ Kelvinator PNC 925060081 ✔ Kelvinator KTM4602WA-R ✔ Kelvinator PNC 925060080 ✔ Kelvinator WTB5404SA-LH ✔ Kelvinator PNC 925060011 ✔ Kelvinator WTB5404SA-RH ✔ Kelvinator PNC 925060010 ✔ Kelvinator WTB4604SA-LH ✔ Kelvinator PNC 925060009 ✔ Kelvinator WTB4604SA-RH ✔ Kelvinator PNC 925060008 ✔ Kelvinator WTB5400SA-LH ✔ Kelvinator PNC 925060007 ✔ Kelvinator WTB5400SA-RH ✔ Kelvinator PNC 925060006 ✔ Kelvinator WTB4600SA-LH ✔ Kelvinator PNC 925060005 ✔ Kelvinator WTB4600SA-RH ✔ Kelvinator PNC 925060004 ✔ Kelvinator WTB5400WA-L ✔ Kelvinator PNC 925060003 ✔ Kelvinator WTB5400WA-R ✔ Kelvinator PNC 925060002 ✔ Kelvinator WTB4600WA-L ✔ Kelvinator PNC 925060001 ✔ Kelvinator WTB4600WA-R ✔ Kelvinator PNC 925060000 |
| SKU Number | FIT_0004638_002_00009 |
