This is a ELSAFE PIXEL USB + RJ45 of brand Elsafe.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

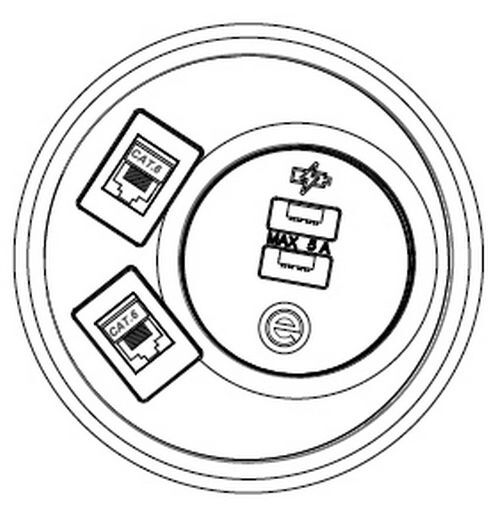

Title ELSAFE PIXEL USB + RJ45
Notes TUF 5A USB-A / USB-C POWER OPTIONAL ETHERNET SOCKETS The PixelTUF from Elsafe uniquely harbours a fully integrated TUF A+C USB fast charger in a compact Ø90mm unit + Optional Ethernet RJ45.Designed to fit directly into a standard 80mmØ hole office desk.PixelTUF enables the time-short mobile worker to charge a laptop at the same time as charging their mobile phone and tablet! Perfect for hot desks, drop in areas, schools, airports & hotels. PixelTUF fits almost flush at any angle into a standard 80mm grommet cut out without the need for tools. Available in black or white with a black, white or silver band option. PixelTUF has unique sweeping organic curves to ensure protection against liquid ingress as required by AS/NSZ3000.Twin USB Fast Charger (TUF A+C) maximum combined output of 5A. at 5V DC. Or 10A with Double TUF configuration.3 core 1.5mm² power cord to GST 18/3 Wieland or appropriate power cord to national mains plug.Data A/V cable pull though: Single cable up to 9mm Ø via knock-out in pixel/TUF fasciaCable management: attachment point for pathfinder umbilical.100% testing - continuity, polarity, insulation & earth, plus TUF charger output.
DescriptionPIXEL 1 x 5A TUF / 2 x DATA Couplers with 800mm Lead and J Coupler
ColourWhite/Silver
USB1x A, 1x C
USB Total5A
RJ452
Lead0.8M
PlugJ Coupler
ManufacturerElsafe
SKU NoWES_522020_3



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.
