ELSAFE PIXEL USB + RJ45
TUF 5A USB-A / USB-C POWER OPTIONAL ETHERNET SOCKETS
SKU code: WES_522018_2
This is a ELSAFE PIXEL USB + RJ45 of brand Elsafe.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | ELSAFE PIXEL USB + RJ45 |

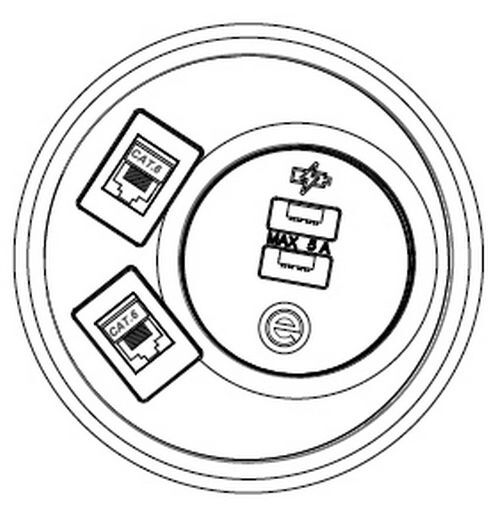

| Notes | TUF 5A USB-A / USB-C POWER OPTIONAL ETHERNET SOCKETS The PixelTUF from Elsafe uniquely harbours a fully integrated TUF A+C USB fast charger in a compact Ø90mm unit + Optional Ethernet RJ45.Designed to fit directly into a standard 80mmØ hole office desk.PixelTUF enables the time-short mobile worker to charge a laptop at the same time as charging their mobile phone and tablet! Perfect for hot desks, drop in areas, schools, airports & hotels. PixelTUF fits almost flush at any angle into a standard 80mm grommet cut out without the need for tools. Available in black or white with a black, white or silver band option. PixelTUF has unique sweeping organic curves to ensure protection against liquid ingress as required by AS/NSZ3000.Twin USB Fast Charger (TUF A+C) maximum combined output of 5A. at 5V DC. Or 10A with Double TUF configuration.3 core 1.5mm² power cord to GST 18/3 Wieland or appropriate power cord to national mains plug.Data A/V cable pull though: Single cable up to 9mm Ø via knock-out in pixel/TUF fasciaCable management: attachment point for pathfinder umbilical.100% testing - continuity, polarity, insulation & earth, plus TUF charger output. |
| Description | PIXEL 1 x 5A TUF / 2 x DATA Couplers with 2000mm Lead and 10a three pin plug |
| Colour | Black/Silver |
| USB | 1x A, 1x C |
| USB Total | 5A |
| RJ45 | 2 |
| Lead | 2M |
| Plug | 3 Pin 240Vac |
| Manufacturer | Elsafe |
| SKU No | WES_522018_2 |
