DSPB KERNEL BOARD ADAU1701
DIGITAL SOUND PROCESSOR BOARD ONLY
SKU code: WES_DSPB-K_2

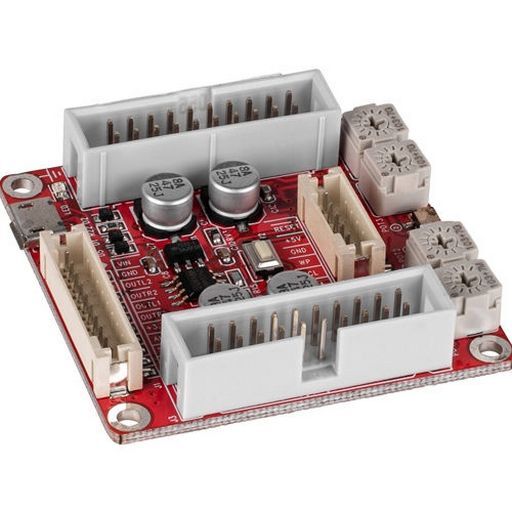

This is a DSPB KERNEL BOARD ADAU1701 of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DSPB KERNEL BOARD ADAU1701 |
| Notes | DIGITAL SOUND PROCESSOR BOARD ONLY The Dayton Audio DSPB-K DSP preamp adds powerful DSP processing to any amplifier or project! It’s preconfigured to adjust high/low pass filters and gain settings with the onboard potentiometers, but unlock its full potential by combining it with the Dayton Audio ICP1 (sold separately). Explore almost limitless possibilities of precise EQ, filters, bass processing, time alignment and so much more with the SigmaStudio development tool. All of this potential comes in a package smaller than most passive crossover circuits, even when combined with the DSPB-KE (sold separately), which adds all of the RCA and 3.5mm connections appropriate for making a 2.1 system.Add the Dayton Audio DSPB-K between your input source and amplifier to add powerful DSP processing to your next speaker project! Thanks to the built-in Analog Devices ADAU1701 processor, this preamp is capable of filters, precise EQ, bass enhancement, time alignment and so much more that isn’t feasible with passive crossover components. Get quick access to filter and gain settings with the built-in potentiometers out of the box, but unlock the full potential of the DSPB-K by combining it with the Dayton Audio DSPB-ICP1 (sold separately), allowing it to be programmed with SigmaStudio and your Windows PC. Just make sure the switch on the DSPB-K is set to program mode, and the switch on the DSPB- ICP1 is set to USB. Check out the attached user manual and example SigmaStudio projects for more details about the capabilities of the entire DSPB series! Integrated DSP Chip ADAU1701 Create nearly limitless possibilities of EQ, crossover, bass enhancement, time alignment and more thanks to the ADAU1701 DSP chip built into the DSPB-K kernel board. Optional Programing Interface Board DSPB-ICP1 Add the DSPB-ICP1 to unlock the full potential of the DSP built onto your DSPB-K! When connected to a Windows PC, the DSPB-ICP1 allows you to program your DSPB-K with the Analog Devices SigmaStudio development tool, allowing for practically endless DSP customization including precise EQ, filters, bass enhancement, time alignment, and more that is practically impossible with passive crossovers. Optional DSPB-KE Connects it to an Amplifier DSPB-KE The DSPB-KE is a perfect match for the DSPB-K to quickly create a 2.1 system! The DSPB-KE includes standoffs and a 10-wire jumper cable to integrate these two boards into a diminutive package, adding to the DSPB-K the appropriate RCA and 3.5mm connections for a 2.1 system without the need for soldering or a custom solution.Extremely popular Analog Devices' ADAU1701 processor is built in for advanced DSP processing in a tiny packageFour potentiometers built-in to adjust the gain and high/low pass filters for your satellite and subwoofer channels right out of the boxAlmost endless customisation when combined with a Dayton Audio ICP1 (sold separately) and SigmaStudio |
| Series | DSP Boards |
| Type | Kernel DSP |
| Manufacturer | Dayton Audio |
| SKU No | WES_DSPB-K_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_DSPB-K_2 |
| Brand | Dayton Audio |
