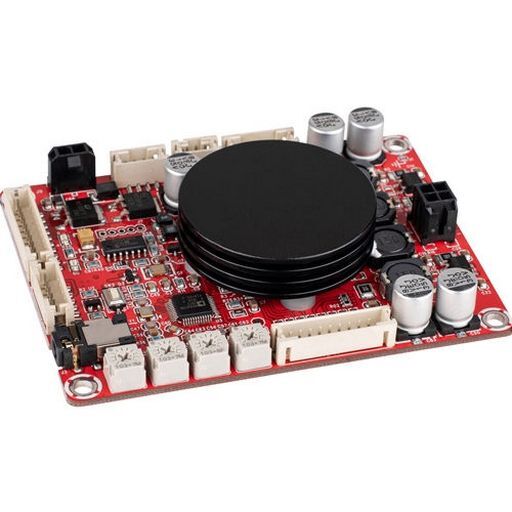

This is a DSPB 100W MONO AMPLIFIER BOARD WITH DSP of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title DSPB 100W MONO AMPLIFIER BOARD WITH DSP
Notes DIGITAL SIGNAL PROCESSOR + AMPLIFIER Dayton Audio DSPB-100 combines a 1 x 100W amp board with the ADAU1701 digital signal processor which enables you to customize sound using SigmaStudio software and Dayton Audio ICP1 Bluetooth programmer. Use the DSPB-100 as the heart of your DSP audio project, or combine it with the KAB-250v4 to make a Bluetooth DSP 2.1 channel project.High Quality Audio Performance The Dayton Audio DSPB-100 DSP Amplifier Board delivers high quality sound without drawing a lot power. This is due to the highly efficient TPA3116 Class D amplifier chip. The TPA3116 operates at 88% efficiency, thus eliminating the need for a large heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build. This board is preset to work as a subwoofer amp board. If you want to use it as a for full range amp board you must preprogram it with SigmaStudio.  Integrated DSP Chip Unlike other amplifier boards, the Dayton Audio DSPB-100 includes a built-in ADAU1701 DSP chip. Create nearly limitless possibilities of EQ, crossover, bass enhancement, time alignment and more thanks to the ADAU1701 DSP chip. Make advanced crossovers with ease without circuit knowledge, capacitors, inductors, or preamp boards, and get almost immediate feedback on how your project sounds. SigmaStudio software and Dayton Audio DSPB-ICP1 programming board (sold separately) combine together to let you set audio parameters to produce hi-fi quality sound. Download SigmaStudio into your desktop or laptop computer and plug the small ICP1 board into the USB port using a micro USB cable (sold separately). To quickly adjust the sound there are four potentiometers on the DSPB-100 amp board.  Easy Installation Included with the DSPB-100 are three wire harnesses: one for DC power, one for Line-input, and the other for connecting to stereo speakers. For many users, these cables are all that is needed to complete a project. Since they have additional on board connectors, wiring harnesses (sold separately) are available to speed-up installation and create confident connections without soldering. Dayton Audio also offers a variety of accessories with robust features to make installation even easier. Find out more about optional accessories below.  Endless Applications Use this full function, adjustable amplifier board with built-in DSP chip in endless audio applications that seem impossible to produce the right sound quality. So if you’re a hobbyist or manufacturer enjoy presetting this full functioning 1 x 100W DSP amplifier board to peak performance in your finished product. The DSPB-100 is also CE and FCC ready for certification purposes. To add more channels and Bluetooth to a project, combine the DSPB-100 with a Dayton Audio KAB-250v3 amp board using wiring kit DSPB-EC (sold separately). Examples of applications include:  Portable Power Paths For portable applications, there are three battery holder/charging boards which permit the connection of li-Ion rechargeable batteries to power the board. First is the Dayton Audio KAB-BE 3-cell 18650 battery holder/charger board that is the same size as the DSPB-100 and KAB-250v3 which makes it easy to stack the boards with standoffs. This battery board must use a 15 to 24 VDC power supply. If you desire more wattage output, use the 5-cell 21 VDC Dayton Audio LBB-5S or LBB-5 board. They work with 5 to 24 VDC power supplies. The LBB-5S uses 18650 Li-Ion batteries, and the LBB-5 uses 26650 Li-Ion batteries which delivers more play time. These portable power sources are highly recommended since all three provide under/over voltage protection. Please note: To achieve power output briefly plug in the recommended power supply into the battery boards after the batteries are installed or when the batteries are removed and reinstalled.  Optional Expansion Cables DSP-EC Use the DSPB-EC cable kit to customize any Dayton Audio DSPB project. Each wire harness comes equipped with mini connectors for easy termination to the board, and each cable is 20 in length.  The 6-wire cable combines sound level functions with the KAB-250v3 and KAB-230v3  The 3-wire cable combines power functions with the KAB-250v3 and KAB-230v3.  The 4-wire battery cable is for portable projects where AC or 12 VDC car power are not available. This cable plugs directly into all the Dayton Audio Li-Ion battery boards. If using the KAB-BE battery board you must also add the KAB-250v3 or KAB-230v3 to the project for charging purposes.  Three LEDs green, blue, and red are in the kit for charge, Bluetooth, and power status if you add one of the KAB Bluetooth amp boards to the DSPB board. Each LED has its own 2-wire harness.  Add an optional SPST unmarked switch (sold separately) to the 2-wire on/off power cable to cut power to the entire board.  Optional Programing Interface Board DSPB-ICP1 The Dayton Audio DSPB-ICP1 provides a solution to programing the DSPB-100 amp board using SigmaStudio software. Download SigmaStudia software to your computer and send programming instructions using a micro USB cable (not included) to the DSP-ICP1 programing board that installs settings into the DSPB-100 amp board with the included 6-pin cable. Please note: The included cable has the same 6-pin plug that joins the KAB-250v3 to the DSPB-100. Make sure the programing board plugs into J-4 or #8 in the quick reference guide.  Optional Li-Ion Battery Charging Board KAB-BE The Dayton Audio KAB-BE Li-Ion battery charging board holds three 18650 batteries (sold separately). This charging board has built in under/over voltage protection circuits for safe charging and longevity. It balances different voltage between batteries in case one battery discharges faster than the others. A 19 VDC, 1-5A power adapter works best for charging batteries contained in this board. Additional boards can be sequenced together to provide longer playing time. Please note: When removing batteries from the KAB-BE, the charging adapter must be plugged in momentarily after the new batteries have been inserted. Failing to do so will prevent the amp board from powering up.  Optional L-type Aluminum Bracket KAB-AB It can be quite difficult to install the audio amplifier board into tight spaces such as portable sound applications. To securely mount the DSPB amplifer board and improve space efficiency Dayton Audio offers the KAB-AB; an optional L-type aluminum bracket. This aluminum bracket supports vertical and horizontal mounting configurations to satisfy different installation requirements. With four M3.5 screw lock standoffs, most Dayton Audio KAB and DSPB amplifier boards install easily on the bracket using the four included security screws. Two M3.5 holes and seven slots give you the versatility to mount the L-type bracket to your project as needed.  Optional High Performance Power Supply To meet the wattage output as listed in the specifications, using a 24V 5A DC Switching Power Supply is recommended. The power supply accepts inputs 100-240 VAC. It features a 6 ft. detachable input cord, and a 2.5mm x 5.5mm x 9mm center positive plug 4 ft. output cord. Approved/listed by all major safety agencies; UL, CUL, and CE. This power supply can also be used with the option battery boards.Efficient 100W of power from the TPA3116 amp chip (Wrms 24Vdc 2Ω)Wire harnesses make installation quick and simple with no soldering requiredIncludes power input cables, Aux-in cables and speaker cablesConnects directly to KAB-250v4 with optional wiring harness (sold separately) to achieve 2.1 channel output and Bluetooth capabilitiesPowering by battery or direct DC input from 12V to 24V power source (4A)Program with SigmaStudio software and Dayton Audio ICP1 (sold separately)
Power (RMS)1x 100Wrms
SeriesDSP Boards
TypeAmplifier
ManufacturerDayton Audio
SKU NoWES_DSPB-100_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_DSPB-100_1
Brand Dayton Audio
