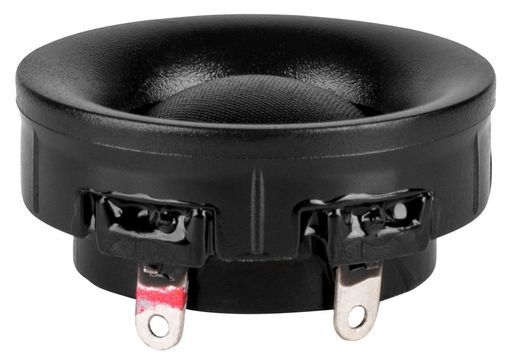

⅝ DOME TWEETER 6Ω NEODYMIUM
DAYTON AUDIO
SKU code: WES_ND16FA-6_2
This is a ⅝ DOME TWEETER 6Ω NEODYMIUM of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | ⅝ DOME TWEETER 6Ω NEODYMIUM |
| Notes | DAYTON AUDIO This versatile tweeter is designed for providing soft and smooth sound and can be used in various system and setup. Conceived with line array thoughts in mind, it is possible to achieve the inter-driver spacing needed to minimise comb filtering out to nearly 20 kHz. But their uses don't stop at line arrays. They have the sensitivity, smoothness, and power handling to individually make a two-way with most small woofers.Unique front press-fit, flush-mount designCentre-to-centre spacing as low as 1⅜Extended response with superior off-axis dispersionCompact neodymium motor is effectively self-shieldedFerrofluid enhances power handling and helps damp resonance |
| Description | 5/8' DOME TWEETER 6Ω NEODYMIUM - DAYTON |
| Type | Tweeter |
| Size | 0.625' |
| Price Type | each |
| Power | 10W |
| QTY | 1 |
| Impedance | 6Ω (Re 5.8Ω) |
| Depth | 14.5mm |
| Sens. | 88dB |
| Re | 5.8Ω |
| Qms | 3.45 |
| Qes | 6.09 |
| Qts | 2.2 |
| Vas | - |
| Sd | 2cm² |
| Cms | - |
| Fs | 2125Hz |
| Mms | - |
| Zn | 6Ω |
| Le | 0.04mH |
| Diam. | 33mmØ |
| Manufacturer | Dayton Audio |
| Prms | 10W |
| Impedance (Ohm) | 6 ohm |
| Power (RMS) | 0-50 Watt |
| Inch | 0.625 |
| Series | ND Series |
| Hole | 25mmØ |
| SKU No | WES_ND16FA-6_2 |
