DIGIZONE BGM 8 ZONE MIXER [EXPANDABLE]
DIGIZONE BGM 8 ZONE MIXER [EXPANDABLE]
SKU code: WES_DIGIPAGE_1
This is a DIGIZONE BGM 8 ZONE MIXER [EXPANDABLE] of brand Australian Monitor.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | DIGIZONE BGM 8 ZONE MIXER [EXPANDABLE] |

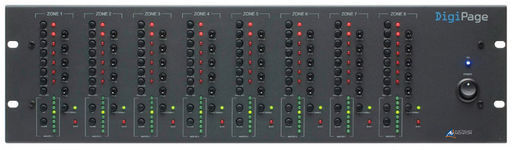

Notes | The DigiPage is a 3 rack unit multi zone paging and source selection system that offers unprecedented flexibility for multi zone paging and source routing applications. 6 program inputs and one dedicated local microphone/line input are available to each of the 8 zone outputs. With LED indication for program/local input selection, zone output level, paging enable/disable and network busy, the DigiPage provides extensive status indication to the user. The DigiPage is also expandable to 16 zones via a simple link cable to a second unit. Paging stations are available in 8 or 16 zone models allowing paging into any individual zone, any combination of zones or All Call. Remote control panels are also available, allowing source selection and volume control from within each remote zone. Both paging stations and remote control panels connect via an inexpensive and industry standard CAT5 cable network. An overall priority input is also provided for emergency or evacuation signals. The DigiPage is an incredibly versatile and well-featured product that provides a simple solution to the complex applications of multi zone paging and source routing.6 balanced microphone/dual RCA line program inputs8 dedicated local inputs (one per output zone)8 Zone outputs (expandable to 16 zone outputs)Capacity for multiple remote paging microphonesRemote wall panels for source select and Volume controlEmergency input4 CAT5 ports which are used to connect to remote zone paging microphones DPRM remote panelsEasy front panel input selection |
Description | 8 zone paging and BGM system, expandable to 16 zone |
Manufacturer | Australian Monitor |
SKU No | WES_DIGIPAGE_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
MPN | |
SKU | WES_DIGIPAGE_1 |
Brand | Australian Monitor |
