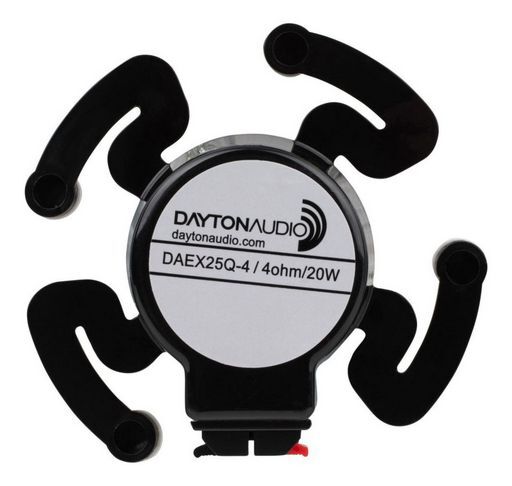

DAYTON QUAD 25MM SOUND EXCITER 20W
4 OHM
SKU code: WES_DAEX25Q-4_2
This is a DAYTON QUAD 25MM SOUND EXCITER 20W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON QUAD 25MM SOUND EXCITER 20W |
| Notes | 4 OHM Dayton Audio's DAEX25Q-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1 voice coil allows for more input power, creating rich, dynamic sound. 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms for installation. Two spring-loaded terminals are built onto the main body for quick electrical connection.Unique, four arm design for exciting a large surfacePre-applied 3M™ VHB™ adhesive for quick, secure installationRare-earth neodymium motor and a proprietary voice coil4-ohm impedance for use with small, Class D amplifiers20 watt RMS power handling for high output |
| Description | Quad Feet 25mm Exciter 20W 4 Ohm Quad Feet 25mm Exciter 20W 4 Ohm |
| Type | Exciter |
| Size | 4' |
| Power | 20Wrms |
| Height | 25mm |
| Coil | 25mmØ |
| Width | 101mmØ |
| Impedance | 4Ω |
| Re | 4.3Ω |
| Qts | 0.69 |
| Cms | 0.0003mm/N |
| Fs | 224Hz |
| Mms | 1.75g |
| Zn | 4Ω |
| Le | 0.25mH |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Diam. | 101mmØ |
| Dimensions | 25x101mmØ |
| QTY | 1 |
| Prms | 20W |
| Inch | 4 |
| Price Type | each |
| SKU No | WES_DAEX25Q-4_2 |
