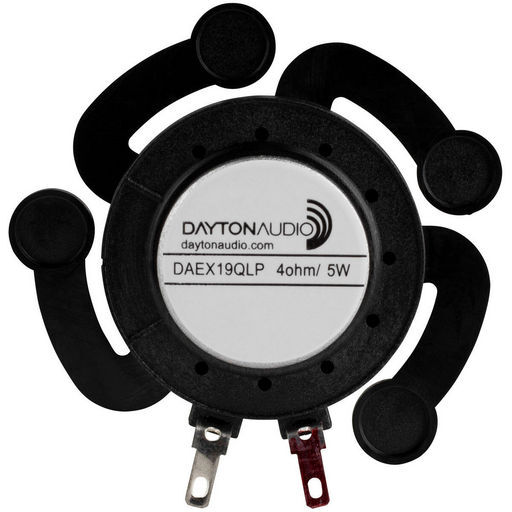

DAYTON QUAD 19MM SOUND EXCITER 5W
DAYTON AUDIO
SKU code: WES_DAEX19QLP-4_2
This is a DAYTON QUAD 19MM SOUND EXCITER 5W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON QUAD 19MM SOUND EXCITER 5W |
| Notes | DAYTON AUDIO Dayton Audio's DAEX19QLP-4 quad arm exciter is built with four arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). Also, the arms help to support the magnet/voice coil improving linearity when mounted on vertical surfaces. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 0.75 voice coil allows for more input power, creating rich, dynamic sound. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the four arms ... just peel and stick!Rare-earth neodymium motor and a proprietary vented voice coil4 ohm impedance for use with small, Class D amplifiersFour arms provide extra support improving linearityTurns any flat, rigid surface into a speaker |
| Description | Quad Feet Low Profile 19mm Exciter 5W 4 Ohm |
| Diam. | 57mmØ |
| Dimensions | 12x57mmØ |
| Height | 12mm |
| Impedance | 4Ω (Re 3.5Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 2.25 |
| Manufacturer | Dayton Audio |
| Power | 5Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 5W |
| QTY | 1 |
| Re | 3.5Ω |
| Size | 2.25' |
| Type | Exciter |
| Width | 57mmØ |
| Zn | 4Ω |
| Le | 0.13mH |
| Depth | 12.5mm |
| Coil | 19mmØ |
| Fs | 450Hz |
| SKU No | WES_DAEX19QLP-4_2 |
