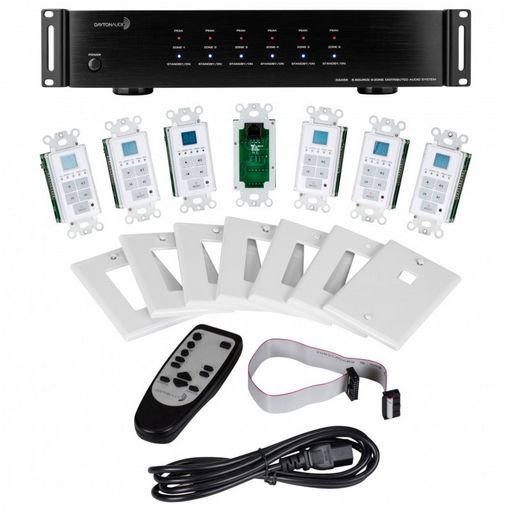

DAYTON MULTI-ZONE AMPLIFIER & CONTROLLERS OVER CAT5
INCLUDES 6 WALL PLATES - REQUIRES CAT5 WIRING
SKU code: WES_DAX66_2
This is a DAYTON MULTI-ZONE AMPLIFIER & CONTROLLERS OVER CAT5 of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON MULTI-ZONE AMPLIFIER & CONTROLLERS OVER CAT5 |
| Notes | INCLUDES 6 WALL PLATES - REQUIRES CAT5 WIRING The DAX66 is a true matrix audio system that delivers an extensive list of features for professional and residential installations. Play music in up to 18 zones from CD, DVD, satellite or cable box, PC, or personal audio device using the DAX66 analog or Toslink input.Enjoying music distributed throughout your home need not be a dream any longer. The DAX66 from Dayton Audio is an affordable, full-featured, six-source, six-zone distributed audio system…your dreams have come true. The DAX66 is a true matrix system allowing a listener in any zone to select from any of the six connected source devices. Four stereo RCA inputs allow you to connect any audio or audio video device like a radio tuner, CD player, Blu-ray DVD player, or satellite/cable TV receiver. Two stereo 3.5mm jacks allow you to connect a personal audio device or a PC. Input six is a shared connection providing a connection for either a Toslink optical cable or a 3.5mm stereo audio cable. Each zone is controlled by a dedicated in-wall keypad with back-lit, soft-touch buttons and LED display. The keypad allows you to change the source, volume level, bass, and treble. When a zone is not active, the power/select button emits a soft blue glow. A built-in IR receiver performs double duty providing zone control by a DAXRC remote control, and control of the source devices using the built-in IR extender. Generous output power is obtained by using class D amplifier circuitry. The DAX66 provides 25 Watts per channel output into 8 Ohm speakers, 50 Watts into 4 Ohm speakers and an impressive 100 Watts into a single 8 Ohms speaker in bridged mono mode. Since each output is discrete you can operate some outputs in bridged mono mode and the other outputs in stereo mode. If you are installing the DAX66 system in a large home or office, you can connect up to two additional systems to the initial system. The additional systems share the 6 source devices and distribute the audio to a maximum of 18 zones. Each zone has stereo pre-amp output that allows you to connect higher-power amplifiers to fill large spaces. Connect a Dayton MA1260 or MA1240 to a pre-amp output to extend a single zone to seven zones. Even control the power state of the attached amplifiers with the trigger outputs. Features of the DAX66 include; 12Vdc trigger output assigned to each zone, IR extender output assigned to each zone; IR ports are compatible with 12Vdc IR emitters, source 1 (PA) over-ride, master mute, AGC on/off, and RS-232 bi-directional interface.Six source inputs, six zone outputs; expandable to 18 zones System control by IR remote, keypad, automation system by RS232Class D amplifier provides 25 Watts RMS per channel at 8 OhmsBridgeable outputs provide 100 Watts RMS per zoneBuilt-in IR repeater to control source inputs from any zone, compatible with 12V IR componentsPre-amp outputs provide the option to connect more-powerful amplifiers or even expand a zone12V trigger outputs can activate an attached amplifier or other device |
| Type | Class D |
| Size | 424x102x362mm |
| RU | 2 |
| Channels | 6x Stereo |
| Power (RMS) | 60Wrms x12 |
| Manufacturer | Dayton Audio |
| SKU No | WES_DAX66_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | |
| SKU | WES_DAX66_2 |
| Brand | Dayton Audio |
