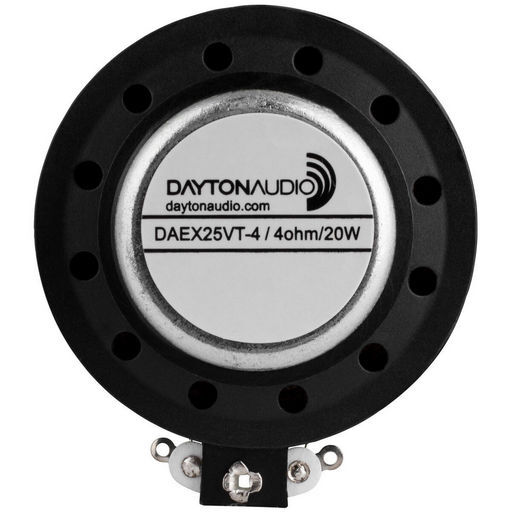

DAYTON AUDIO 25MM VENTED EXCITER 20W
DAYTON AUDIO 25MM VENTED EXCITER 20W
SKU code: WES_DAEX25VT-4_2
This is a DAYTON AUDIO 25MM VENTED EXCITER 20W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON AUDIO 25MM VENTED EXCITER 20W |
| Notes | Dayton Audio's 25 mm DAEX25VT-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1 voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.Small size; just over 2 diameter, about 7/8 highPre-applied 3M™ VHB™ adhesive for quick, secure installationRare-earth neodymium motor and a proprietary voice coil4 ohms impedance for use with small, Class D amplifiers20 watt RMS power handling for high output Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. |
| Description | Vented 25mm Exciter 20W 4 Ohm |
| Cms | 0.0003mm/N |
| Coil | 25mmØ |
| Depth | 20.5mm |
| Diam. | 52mmØ |
| Dimensions | 21x52mmØ |
| Fs | 230Hz |
| Height | 21mm |
| Impedance | 4Ω |
| Impedance (Ohm) | 4 ohm |
| Inch | 2 |
| Le | 0.24mH |
| Manufacturer | Dayton Audio |
| Mms | 1.75g |
| Power | 20Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 20W |
| Qts | 0.83 |
| QTY | 1 |
| Re | 4.2Ω |
| Size | 2' |
| Type | Exciter |
| Width | 52mmØ |
| Zn | 4Ω |
| SKU No | WES_DAEX25VT-4_2 |
