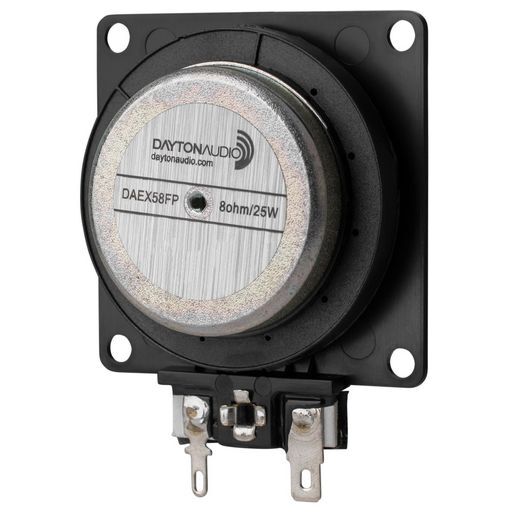

DAYTON 58MM SOUND EXCITER 25W
58MM² FLAT PACK WITH SCREW HOLES
SKU code: WES_DAEX58FP_2
This is a DAYTON 58MM SOUND EXCITER 25W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON 58MM SOUND EXCITER 25W |
| Notes | 58MM² FLAT PACK WITH SCREW HOLES Flat Pack exciter is the perfect choice to turn virtually any solid object into a speaker by vibrating it at speeds of up to 20,000 cycles per second. The DAEX58FP allows for the placement of sound where depth and space is limited. 58x58mmIdeal for commercial or residential sound applications, the Dayton Audio DAEX58FP Flat Pack exciter easily mounts to most any surface using adhesives (3M tape or gel glue recommended) or screw mounted. A 2-1/4 square plate can be attached to virtually any flat surface to produce amazing sound, creating a speaker from most any surface area. Surface materials include: cardboard, glass, wood, steel, sheet rock, and more. The 58 mm exciter is heavily used in the automotive, industrial, point-of-sale, retail display, marine, aeronautical industry, digital signage, and art field, along with many other applications where space and depth limitations are a concern. The flat surface of this transducer can be glued, screwed or double face taped to a wide variety of surfaces to suit almost endless needs. Surfaces include metal cabinets, glass panes, picture frames, wood tiles, under table surfaces, inside display cabinets, cardboard signs, sheet metal and much more.Super small size with low profile height8 ohms impedance for most amplifiersIncludes mounting plateAdds sound to any surface Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. |
| Description | Flat Pack 58mm Exciter 25W 8 Ohm |
| Type | Exciter |
| Size | 2' |
| Price Type | each |
| Power | 25Wrms |
| Freq. | 60Hz - 12KHz |
| Height | 20mm |
| Coil | 32mmØ |
| Width | 58mm² |
| Impedance | 8Ω |
| Depth | 20mm |
| Re | 7.0Ω |
| Qts | 1.98 |
| Cms | .05mm/N |
| Fs | 240Hz |
| Mms | 9.95g |
| Le | 0.47mH |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 0-50 Watt |
| Diam. | 58mm² |
| Dimensions | 20x58mm² |
| QTY | 1 |
| Prms | 25W |
| Zn | 8Ω |
| SKU No | WES_DAEX58FP_2 |
