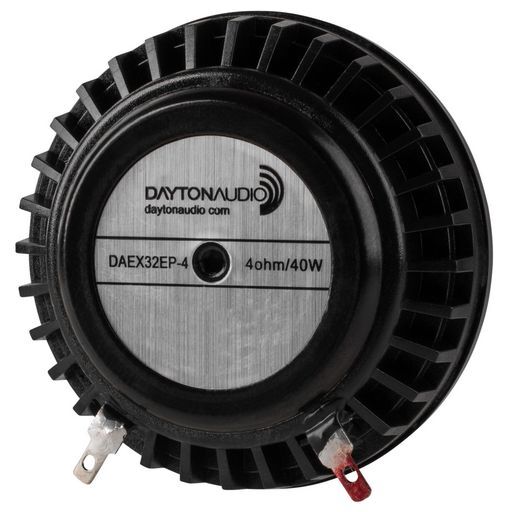

DAYTON 32MM SOUND EXCITER 40W
DAYTON 32MM SOUND EXCITER 40W
SKU code: WES_DAEX32EP-4_2
This is a DAYTON 32MM SOUND EXCITER 40W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON 32MM SOUND EXCITER 40W |
| Notes | Turn even large, rigid surfaces into speakers with the Dayton Audio DAEX32EP-4 Thruster exciter!Dayton Audio's DAEX32EP-4 Thruster exciter is built to turn large, thick, rigid surfaces into speakers. The 32 mm voice coil is attached to a steel spider for maximum restoring force when large amounts of power are applied, making it perfect for large glass panes, furniture, and surfaces that would normally resist the effects of an exciter. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body ... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection.Robust, heavy-duty design with a 32 mm voice coil attached to a steel spiderPre-applied 3M™ VHB™ adhesive for quick, secure installationRare-earth neodymium motor and a proprietary two-layer voice coil4-ohm impedance for use with small, Class D amplifiers40 watt RMS power handling for high output Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. |
| Description | Thruster 32mm Exciter 40W 4 Ohm |
| Size | 1.5' |
| Power | 40Wrms |
| Coil | 32mmØ |
| Width | 42mmØ |
| Impedance | 4Ω |
| Re | 3.3Ω |
| Qts | 1.38 |
| Cms | 0.08mm/N |
| Fs | 395Hz |
| Mms | 5.4g |
| Le | 0.21mH |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Manufacturer | Dayton Audio |
| Diam. | 42mmØ |
| Dimensions | 23x42mmØ |
| QTY | 1 |
| Inch | 1.5 |
| Height | 23mm |
| Prms | 40W |
| Zn | 4Ω |
| Price Type | each |
| Type | Exciter |
| SKU No | WES_DAEX32EP-4_2 |
