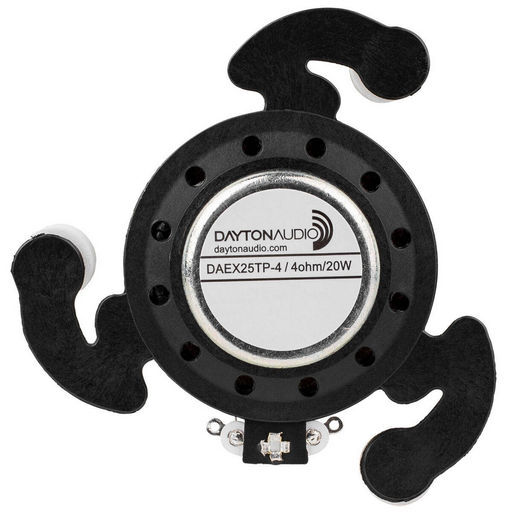

DAYTON 25MM TRIPOD SOUND EXCITER 20W
DAYTON AUDIO
SKU code: WES_DAEX25TP-4_2
This is a DAYTON 25MM TRIPOD SOUND EXCITER 20W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON 25MM TRIPOD SOUND EXCITER 20W |
| Notes | DAYTON AUDIO Dayton Audio's DAEX25TP-4 tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass). A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1 voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.Unique, three arm design for exciting a large surfacePre-applied 3M™ VHB™ adhesive for quick, secure installationRare-earth neodymium motor and a proprietary voice coil4 ohms impedance for use with small, Class D amplifiers Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. |
| Description | Tripod 25mm Exciter 20W 4 Ohm |
| Diam. | 90mmØ |
| Dimensions | 21x90mmØ |
| Height | 21mm |
| Impedance | 4Ω |
| Impedance (Ohm) | 4 ohm |
| Zn | 4Ω |
| Inch | 3.5 |
| Manufacturer | Dayton Audio |
| Power | 20Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 20W |
| QTY | 1 |
| Re | 4.2Ω |
| Size | 3.5' |
| Type | Exciter |
| Width | 90mmØ |
| Le | 0.1mH |
| Fs | 233Hz |
| Coil | 25mmØ |
| SKU No | WES_DAEX25TP-4_2 |
