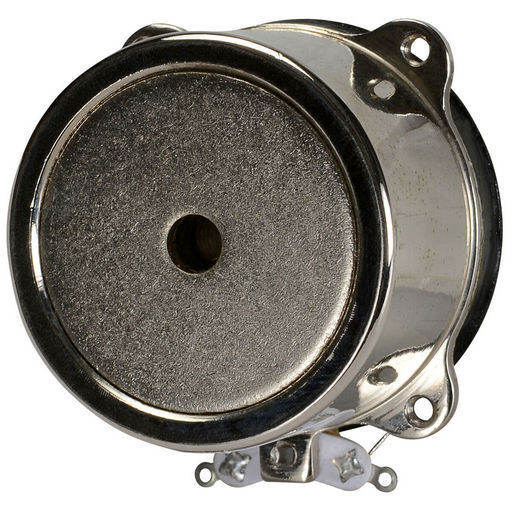

DAYTON 25MM STEERED HIGH FLUX EXCITER 20W
DAYTON 25MM STEERED HIGH FLUX EXCITER 20W
SKU code: WES_DAEX25SHF-4_1
This is a DAYTON 25MM STEERED HIGH FLUX EXCITER 20W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON 25MM STEERED HIGH FLUX EXCITER 20W |
| Notes | Dayton Audio's DAEX25SHF-4 steered high flux exciter can generate a force 4 times greater than most standard sound exciters. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum loudness. For use with small, Class D amplifiers, the steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance. Four screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.High output exciter designSpecially designed neodymium motor and proprietary 2-layer voice coil3M™ VHB™ adhesive ring with four mounting holesLow inductance motor for extended response Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound. |
| Description | Steered High Flux 25mm Exciter 20W 4 Ohm |
| Diam. | 55mmØ |
| Dimensions | 35x55mmØ |
| Height | 35mm |
| Impedance | 4Ω |
| Impedance (Ohm) | 4 ohm |
| Inch | 2 |
| Manufacturer | Dayton Audio |
| Power | 20Wrms |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 20W |
| QTY | 1 |
| Re | 4.3Ω |
| Size | 2' |
| Type | Exciter |
| Width | 55mmØ |
| Zn | 4Ω |
| Le | 0.41mH |
| Coil | 25mmØ |
| Fs | 365Hz |
| SKU No | WES_DAEX25SHF-4_1 |
