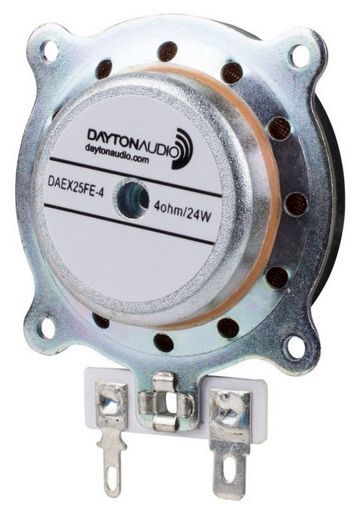

DAYTON 25MM SOUND EXCITER 24W
DAYTON 25MM SOUND EXCITER 24W
SKU code: WES_DAEX25FHE-4_2
This is a DAYTON 25MM SOUND EXCITER 24W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON 25MM SOUND EXCITER 24W |
| Notes | Dayton Audio's 25 mm DAEX25FHE-4 coin type exciter features the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. This exciter's small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1 voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor. To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied... just peel and stick! For permanent inverted mounting (or when mounting on moving surfaces), four screw tabs are also provided to support the weight of the exciter. Two PCB solder points keep installation and wiring as compact as possible.Small size; just under 50.5mm diameter, about 22.5mm highPre-applied 3M™ VHB™ adhesive for quick, durable installationRare-earth neodymium motor and a proprietary voice coil4Ω impedance for use with small, Class D amplifiers24Wrms power for high output |
| Description | Framed High Efficiency 25mm Exciter 24W 4 Ohm |
| Type | Exciter |
| Size | 2' |
| Power | 24Wrms |
| Coil | 25mmØ |
| Width | 50.5mmØ |
| Impedance | 4Ω |
| Re | 4.3Ω |
| Qts | 0.78 |
| Cms | 0.0003mm/N |
| Fs | 224Hz |
| Mms | 1.61g |
| Zn | 4Ω |
| Le | 0.1mH |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Diam. | 50mmØ |
| Dimensions | 20x50mmØ |
| QTY | 1 |
| Inch | 2 |
| Height | 20.5mm |
| Prms | 24W |
| Price Type | each |
| SKU No | WES_DAEX25FHE-4_2 |
