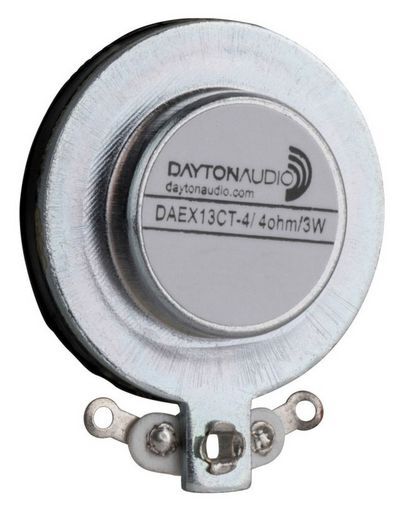

DAYTON 13MM SOUND EXCITER 3W
3W 4 OHMS / 8 OHMS
SKU code: WES_DAEX13CT-4_2
This is a DAYTON 13MM SOUND EXCITER 3W of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | DAYTON 13MM SOUND EXCITER 3W |
| Notes | 3W 4 OHMS / 8 OHMS Dayton Audio's 13 mm DAEX13CT-4 and DAEX13CT-8 coin type exciter feature the same ability to turn nearly any surface into a speaker, as other exciters and tactile transducers, only in a more compact package for working with smaller surfaces. The exciters' small size enable audio reproduction in places never imagined: toys, monitors, cabinet doors... even windows! A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Can be use as a series and series-parallel wired arrays for a highly focused, minimum dispersion sound pattern. 3M VHB (Very High Bond) adhesive is pre-applied. Two PCB solder points keep installation and wiring as compact as possible.Super small size; just over an inch in diameter, about ⅜ highPre-applied 3M™ VHB™ adhesive for a quick, secure installationRare-earth neodymium motorSuitable for use with small, Class D amplifiers |
| Description | Coin Type 13mm Exciter 3W 4 Ohm |
| Type | Exciter |
| Size | 1' |
| Power | 3Wrms |
| Coil | 13mmØ |
| Width | 26.3mmØ |
| Impedance | 4Ω (Re 3.6Ω) |
| Depth | 32mm |
| Re | 3.6Ω |
| Qts | 3.25 |
| Cms | 0.0002mm/N |
| Fs | 650Hz |
| Mms | 0.26g |
| Le | 0.04mH |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| Manufacturer | Dayton Audio |
| Dimensions | 9.5x26mmØ |
| Diam. | 26mmØ |
| QTY | 1 |
| Inch | 1 |
| Prms | 3W |
| Zn | 4Ω |
| Freq. | 70Hz - 20KHz |
| Height | 9.5mm |
| Price Type | each |
| SKU No | WES_DAEX13CT-4_2 |
