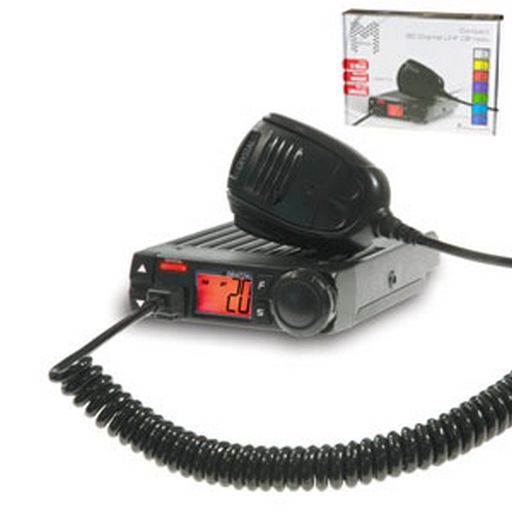

CRYSTAL 80CH UHF CB RADIO - COMPACT
477MHZ 12V 5W TRANSCEIVER
SKU code: WES_DB477A_2
This is a CRYSTAL 80CH UHF CB RADIO - COMPACT of brand Aerpro.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | CRYSTAL 80CH UHF CB RADIO - COMPACT |
Notes | 477MHZ 12V 5W TRANSCEIVER This high powered unit features the new 80CH UHF Narrow Band. Backward compatible with the standard 40CH UHF (Wide-band). This unit is very compact and features a large LCD display with changeable backlighting colour. The CB radio has a heavy duty die cast aluminium chassis for rugged protection and efficient heat dissipation. It has a 12V line output used for muting compatible stereos when receiving a call from another transmitter. The automatic squelch has adjustable sensitivity control to help filter out annoying back-ground noise. Compact 155x112x55mm. 12Vdc. 5W. 477MHzNew Narrow band channel compatible transceiver80 Channel UHF CB Compact Compatible with standard 40CH UHFHigh power 5 Watt transmission Large backlit LCD display (7 adjustable colours)Full aluminium die cast chassis with integrated heat sinkCapable of muting the car stereo when receiving signalsAutomatic squelch controlChannel scanningDuplex Range Extender feature:Extends the range of communication through local repeater stations from the surrounding areas.13.8Vdc 40CH Wide-Band & 80CH Narrow Band The ACMA (Australian Communications and Media Authority) restructured the UHF CB band and increase its capacity from 40 up to 80 channels. Older radios that operate on only 40 UHF-CB channels are “Wideband” radios and the newer radios that will operate on the 80 UHF-CB channels are “Narrowband” radios. Both Narrowband radios and Wideband radios can communicate together normally as always on the first 40 channels. Only the new Narrowband radios will have the additional channels up to channel 80. |
Description | CRYSTAL MOBILE - 5W COMPACT IN CAR UHF CB RADIO - DB477A |
Size | 153x109x30mm |
Power | 5W |
Manufacturer | Aerpro |
Packaging | Giftbox |
SKU No | WES_DB477A_2 |
