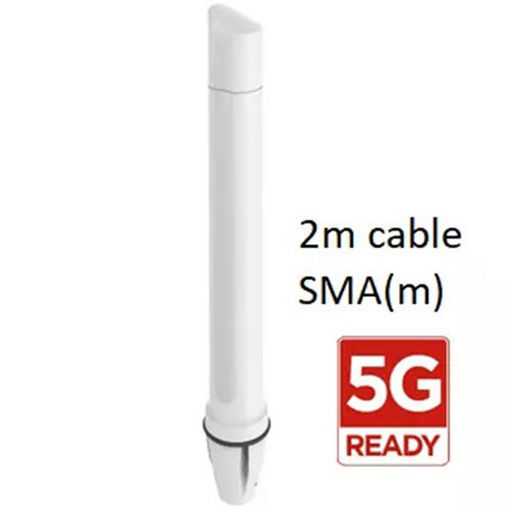

This is a CELLULAR ANTENNA 3G/4G/5G 2.5-6.5DB 750MM OMNI-DIRECTIONAL of brand Blackhawk.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title CELLULAR ANTENNA 3G/4G/5G 2.5-6.5DB 750MM OMNI-DIRECTIONAL
Notes The ANT-PY-00007 is an ultra-wideband antenna, which covers all contemporary LTE operating frequencies with excellently balanced gain across all frequencies. The antenna also offers 2X2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows the antenna to have superior pattern control over the entire frequency range making the OMNI-402 a true high-performance omnidirectional MIMO antenna, suitable for marine and coastal applications. The antenna is future-proof as it covers the 3300 – 3800MHz capable for coastal and inland use. Incldes 2m HDF-195 cable SMA(m),U-bolt mount with L-bracket (for Ø30-50mm Pole). Mount sold separately.High performance wideband Omni-directional marine antenna2X2 MIMO capability for improved performanceEasy mounting with feed through 1-inch marine standard adaptor bracket includedRobust and all-weather proof for harsh conditions at sea (IP68)Various 316 stainless steel mounting brackets available optionallyUV and saltwater protected against tempestuous weather conditions
DescriptionPoynting OMNI-402 MIMO LTE Marine antenna, 410-3800MHz, 6.5/2.5dBi, 2m cable SMA/M
Barcode0707273470393
ConnectorSMA-M
Device TypeAntenna
Dimensions750x75mmØ
Freq.410-470 / 698-2700 / 3400-3800 MHz
Gain6.5 dBi (max)
MountingStandard 1″ -14TPI Marine Mount & Wall/pole mount
TypeAntenna Omni
ManufacturerBlackhawk
SKU NoWES_ANT-PY-00007_1
