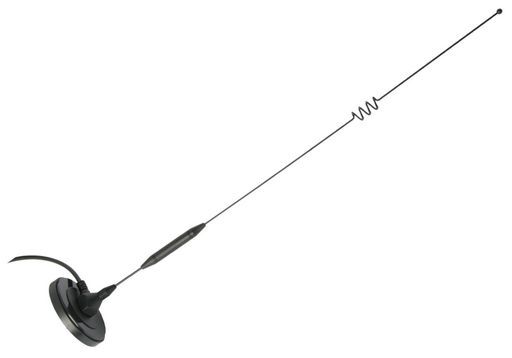

This is a CELLINK MAGNETIC-BASE ANTENNA 5dB & 7dB of brand Cellink.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
TECHNICAL SHEET | |
---|---|
Title | CELLINK MAGNETIC-BASE ANTENNA 5dB & 7dB |
Notes | LARGE BASE HIGH GAIN Closed Coil type 5dB/7dB Gain Black anodized low wind noise. High wind speed magnetic base for a secure hold at high speed. Rubber lined to protect duco’. Compact temp install solution. Pre-Crimped FME Female Plug. 4M cable LL195 Super Low-Loss. |
Description | 7dB Mag Base Antenna |
Type | 690-960MHz 1710-2700MHz |
Base | Magnetic 80mm |
Length | 520mm |
Lead | 4M x LL195 |
Plug | FME female |
Gain | 7dB |
Band | 850MHz - 1800MHz |
Cable Length | 3M |
Total Length | 520mm |
Base Diameter | 60mm |
Network | 7dB Next-G 850/GSM900 |
Frequency | 828 - 960Mhz / 1710 - 1880Mhz |
Colour | Black |
Manufacturer | Cellink |
Connector | FME Female |
Termination | FME Female 3M LL195 Cable Tail |
Coax Spec | LL195 |
System | Next G / GSM 900 / GSM 1800 |
SKU No | WES_ANT481_1 |
