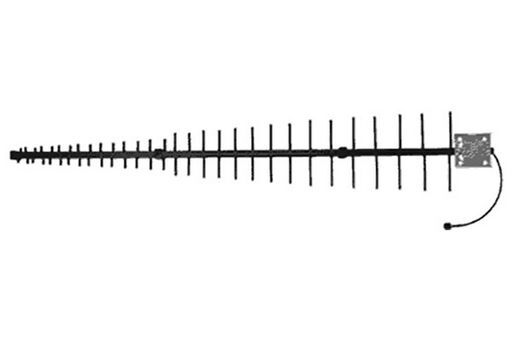

CEL-FI ANTENNA LPDA 11dBi - BLACKHAWK
4G-5G LPDA ANTENNA, 698 TO 4000 MHz
SKU code: WES_ANT-BH-YG-LOG-LPDA_3
This is a CEL-FI ANTENNA LPDA 11dBi - BLACKHAWK of brand Blackhawk.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | CEL-FI ANTENNA LPDA 11dBi - BLACKHAWK |
| Notes | 4G-5G LPDA ANTENNA, 698 TO 4000 MHz Operating on all 4G and 5G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network. This is the ideal external antenna for Cel-Fi repeater systems.The Blackhawk LPDA Antenna provides an ideal solution for 4G / 5G voice and data applications. The LPDA antenna covers all cellular bands between the 700 and 4000 MHz range with a high peak gain which projects maximum energy in the direction of the cell tower, while maintaining a wide enough beam to capture signal reflections off nearby buildings, hills, and signal scattered by trees. The antenna was redesigned in late 2019 to cover the new 3.5 GHz 5G band, making it now an ideal solution for LTE-A Pro and 5G high-speed connectivity when mounted in 2×2 or 4×4 MIMO configuration. This antenna can be used on any mobile phone network in Australia, in any area without worrying about compatibility. A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptionally wideband performance by phasing a series of elements together, much like an ordinary yagi but with each successive element of a smaller (or larger) length. The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.11.3 dBi peak gain across lower bands 698 to 960 MHz11.5 dBi peak gain across bands 1695 to 2700 MHz9.5 dBi gain across upper bands 3300 to 4000 MHzRuggedised construction for Australian conditionsFully welded, powder coat aluminium designStainless steel mounting clamp included30 cm tail with pre-terminated N Female connectorIdeal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G |
| Description | Blackhawk LPDA 12/14 dBi excluded Cable |
| Band | 4G/5G 698-960MHz / 1695-2700MHz / 3300-4000MHz |
| Colour | White |
| Description Extended | The Blackhawk wideband antenna is a fantastic little antenna providing good performance with a lightweight, low cost design. There’s plenty of situations where a big, solid metal antenna is necessary, but also plenty where something quick and small can be just as useful. This antenna is great for areas where indoor signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement. |
| Feature | 11.3 dBi peak gain across lower bands 698 to 960 MHz 11.5 dBi peak gain across bands 1695 to 2700 MHz 9.5 dBi gain across upper bands 3300 to 4000 MHz Ruggedised construction for Australian conditions Fully welded, powder coat aluminium design Stainless steel mounting clamp included 30 cm tail with pre-terminated N Female connector Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G |
| Frequency | 698-960 MHz / 1695-2700 MHz / 3300-4000 MHz |
| Gain | 11dBi |
| Lead | No Lead |
| Length | 450mm |
| OEM | Blackhawk LPDA 11dBi |
| Plug | SMA/M |
| Type | Antenna LPDA |
| Includes | No Cable |
| Manufacturer | Blackhawk |
| SKU No | WES_ANT-BH-YG-LOG-LPDA_3 |
