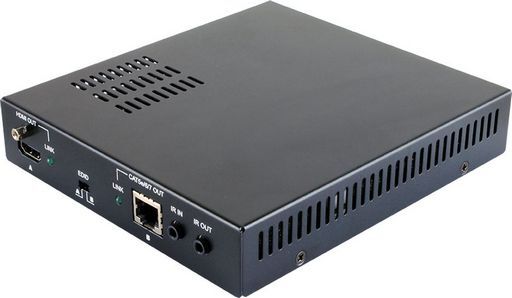

This is a .CAT5e/6/7 REPEATER WITH HDMI BYPASS OUTPUT (60m) of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title .CAT5e/6/7 REPEATER WITH HDMI BYPASS OUTPUT (60m)
Notes The CAT5e/6/7 over HDMI and CAT5e/6/7 Splitter can convert a single CAT5e/6/7 input and 2-way IR control to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD). The HDMI output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 60 metres.HDMI with 3D & 4K2K supported, HDCP and DVI compliant Simultaneous HDMI and CAT5e/6/7 outputsSupports data rate from 250Mbps up to 3GbpsSupports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4K2K (3840x2160@24/25/30Hz, 4096x2160@24Hz and 4K2K@60 YUV_420)Supports LPCM 7.1CH, Dolby® TrueHD, Dolby® Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)Supports distances up to 70 metres through CAT5e/6/7 cablesCan select EDIDSupports USB service portSupports control of devices via 2-way IRThe 3D signal display follow by display TV’s EDID
DescriptionCAT5e/6/7 Repeater with HDMI Bypass Output (60M)
Input1x CAT5e/6/7
Output1x HDMI, 1x CAT5e/6/7
IRYes
Cable Length60M (@1080p)
3DYes
HDCPYes
PoEYes
Ethernet-
HD AudioYes
4KYes
RS-232Yes
ManufacturerCypress
Max Res.4Kx2K
SKU NoWES_CHDBX-1H1CPL_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_CHDBX-1H1CPL_1
Brand Cypress
