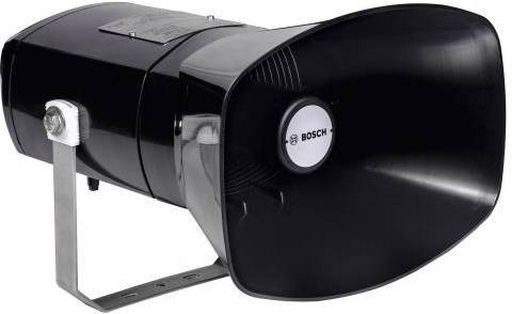

BOSCH PA HORN SPEAKER - INTRINSICALLY SAFE
EXPLOSIVE GAS AIR SAFE
SKU code: WES_LH3-UC25XL_1
This is a BOSCH PA HORN SPEAKER - INTRINSICALLY SAFE of brand Bosch.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | BOSCH PA HORN SPEAKER - INTRINSICALLY SAFE |
| Notes | EXPLOSIVE GAS AIR SAFE The LH3-UC25X horn loudspeaker is specifically designed and certified for installations where explosive gas-air mixtures are likely to be present. The horn is constructed from anti-static Polyamid material, making the horn sturdy and light weighted. The longer flare design of the horn results in a higher sound pressure level where longer distance areas can be covered. The horn loudspeaker is standard supplied with a sturdy stainless steel mounting bracket allowing the sound beam to be accurately directed. The mounting bracket has a ratchet facility to ensure it stays correctly positioned. The connection cable is fed out through an ABS EX cable gland (M20) in the rear cover, which can be removed for entering the inside connection terminal block. For loop through connection, the rear cover is fitted with a second hole (covered with a blanking plug as standard supplied). The horn loudspeaker includes a transformer for 100 V input voltage, with taps on the primary winding for different power settings. The different power taps can easily be selected by connecting to the appropriate terminal of the 6-way terminal block. For enabling loudspeaker supervision, a wire loop from the secondary side of the horn loudspeaker is available in the connection area. This wire loop is normally closed, but if used with the supervision board, cut and connected.ATEX, IECEx, UL, CSA , INMETROConstructed from sturdy, lightweight, anti-static Polyamid materialWater- and dust-protected to class IP67Provision for connection of the optional supervision boards |
| Description | Horn loudspeaker, Ex-proof, long flare |
| Size | 200x270x248mm |
| Watt | 30W |
| Taps | 1.5/2.5/5/6.5/15/25W |
| SPL | 107dB |
| dBi | 121dBmax |
| Manufacturer | Bosch |
| SKU No | WES_LH3-UC25XL_1 |
