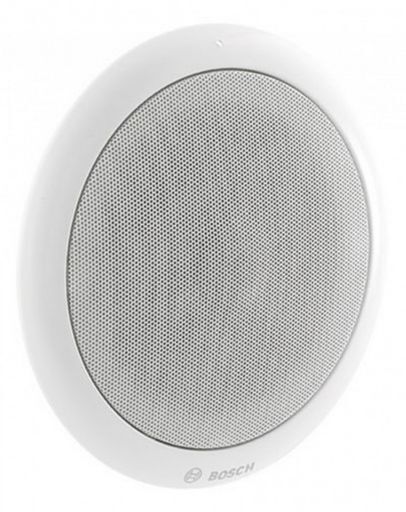

BOSCH PA CEILING SPEAKERS LC1 RANGE
Modular Ceiling Loudspeaker Range
SKU code: WES_LC1-UM06E8_1
This is a BOSCH PA CEILING SPEAKERS LC1 RANGE of brand Bosch.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | BOSCH PA CEILING SPEAKERS LC1 RANGE |
| Notes | Modular Ceiling Loudspeaker Range The range offers a choice of loudspeakers distinguished by input power, opening angle and sound reproduction. It includes three single cone loudspeakers offering a choice of opening angle and high performance coaxial loudspeaker drivers. They all have the same grille size and can be used in combination with the same mounting accessories. The loudspeakers are suitable for use in air‑handling spaces when installed with the LC1‑MFD enclosure.The LC1 Modular Ceiling Loudspeaker range can be used for a wide variety of ceiling environments. They provide excellent speech and music in indoor public address applications. The range offers a choice of loudspeakers distinguished by input power, opening angle and sound reproduction. It includes three single cone loudspeakers offering a choice of opening angle and two high performance coaxial loudspeaker drivers. They all have the same grille size and can be used in combination with the same mounting accessories. The loudspeakers are suitable for use in air‑handling spaces when installed with the LC1‑MFD enclosure. The loudspeaker frame includes provision for mounting the optional pilot-tone indication board or WLS board and has standard a light conductor to indicate the pilot-tone status.Excellent speech and music reproductionEasy installation with one grille size and one complete set of accessoriesChoice of different ceiling mounting methodsOptional Pilot Tone indicationEN 54‑24, UL 2043. UL 1480 certified |
| Description | 6W 6' spring mount steel ceiling speaker with 100V line tx with taps at 6,3,1.5, & 0.75. |
| Type | 1-Way |
| Size | 6' |
| Power | 9Wmax |
| Freq. | 85Hz - 20kHz |
| Watt | 6W |
| Hole | 190mmØ |
| Taps | 0.75/1.5/3/6W |
| SPL | 89dB |
| dBi | 97dB |
| Manufacturer | Bosch |
| Dimensions | 40x220mmØ |
| Details | 6' Steel Facia 6W |
| Brand. | Bosch |
| OEM | F.01U.075.448 |
| SKU No | WES_LC1-UM06E8_1 |
