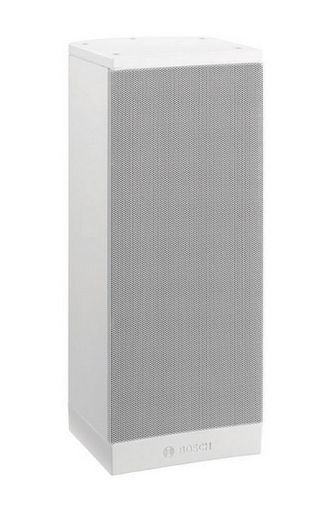

BOSCH CABINET LOUDSPEAKERS - LB1 METAL
PREMIUM‑SOUND METAL INDOOR/OUTDOOR CABINET
SKU code: WES_LB1-UM50E-L_1
This is a BOSCH CABINET LOUDSPEAKERS - LB1 METAL of brand Bosch.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | BOSCH CABINET LOUDSPEAKERS - LB1 METAL |
| Notes | PREMIUM‑SOUND METAL INDOOR/OUTDOOR CABINET The Premium-sound range of cabinets is intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. The range comprises two models, offering a choice of 20 W or 50 W power handling capacity. The enclosures are made from aluminium with ABS top and bottom covers and are available in charcoal (D) and white (L).Typical applications for these products are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas and presentation environments, fitness centre. Its excellent sound reproduction capability is attributed the superb to the use of high‑quality driver components and crossover network design. A self‑restoring passive element protects the high frequency driver against incidental overload. A three‑way ceramic terminal block with screw connections suitable for loop-through wiring is located in the compartment in the base of the unit. An easy to install, sturdy wall mounting bracket is standard supplied. The same bracket can be used in combination with the universal floor stand LBC 1259/00 for temporary installations. All models are supplied with a built‑in 70/100 V transformer with taps on the primary winding for full‑power, half‑power, quarter‑power and one‑eighth power radiation. These taps are connected to a rotary vari‑tap switch located in the compartment in the base of the enclosure, to allow simple output power setting. A low ohmic connection is also provided on the vari‑tap switch.High-fidelity music and speech reproductionSupplied with adjustable wall‑mounting bracketSelf-restoring overload protectionSpace for optional supervision boardEN 54‑24 certified Includes Wall Mount Bracket |
| Description | 50W Aluminium Cabinet Loudspeaker, IP65 White |
| Size | 5' |
| Price Type | Each |
| Colour | Light |
| Watt | 50W |
| Taps | 5/6/12/25/50W |
| Pmax | 50W |
| SPL | 91dB |
| dBi | 108dB |
| Manufacturer | Bosch |
| Dimensions | 405x160x180mm |
| Power (RMS) | 75W |
| Details | 5' x2 Woofers 1' Tweeter |
| Brand. | Bosch |
| OEM | F.01U.076.931 |
| SKU No | WES_LB1-UM50E-L_1 |
