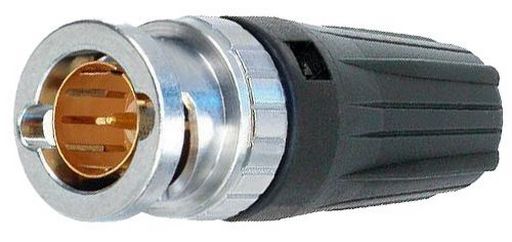

BNC PLUG CRIMP - NEUTRIK
COLOUR BOOTS AVAILABLE
SKU code: WES_NBNC75-BLP7_2
This is a BNC PLUG CRIMP - NEUTRIK of brand Neutrik.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | BNC PLUG CRIMP - NEUTRIK |
| Notes | COLOUR BOOTS AVAILABLE Crimp Centre: 1.6 mm (square) Crimp Shield: see table (hex)The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding. Suitable cables: Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95 “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front. True 75 Ω design meets the stringent HDTV / DVD requirements Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles! Snug-fit center pin insert provides tactile feedback Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies Excellent cable protection and retention Precise Swiss machined brass parts for outstanding durability Accessories include color coded boots in 10 standard colors, crimp tool and dies |
| Colour | Black |
| Pin | 1.6mm |
| Shield | 6.47mm |
| Type | BNC |
| Coax | RG59B/U |
| Manufacturer | Neutrik |
| Suits | Belden 8241, CAE KX6A, Canare LV-61S, Cordial CVI (CVM) 06-37, CommScope 5563, Draka 0.6/3.7, Draka 0.6L/3.7, Proel HPC 805, RG59B/U, Sommer 600-0051 (M,L,S), Sommer 600-0054 (M,L,S), Klotz V06/37, Nexans HF 75 0,6/3,7 2YCY, Percon VK95 |
| SKU No | WES_NBNC75-BLP7_2 |
