This is a replacement asme rego multivalve for vapor withdrawal.

SALIN is a leading Australian appliance spare parts distributor specializing in REGO PRODUCTS appliances. We take pride in our ability to bring hard-to-find REGO PRODUCTS spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our REGO PRODUCTS range is genuine.

TECHNICAL SHEET
TitleASME Rego Multivalve for Vapor Withdrawal for LPG CARAVAN SHOP RESTUARANT
BrandRegO Products
Notes

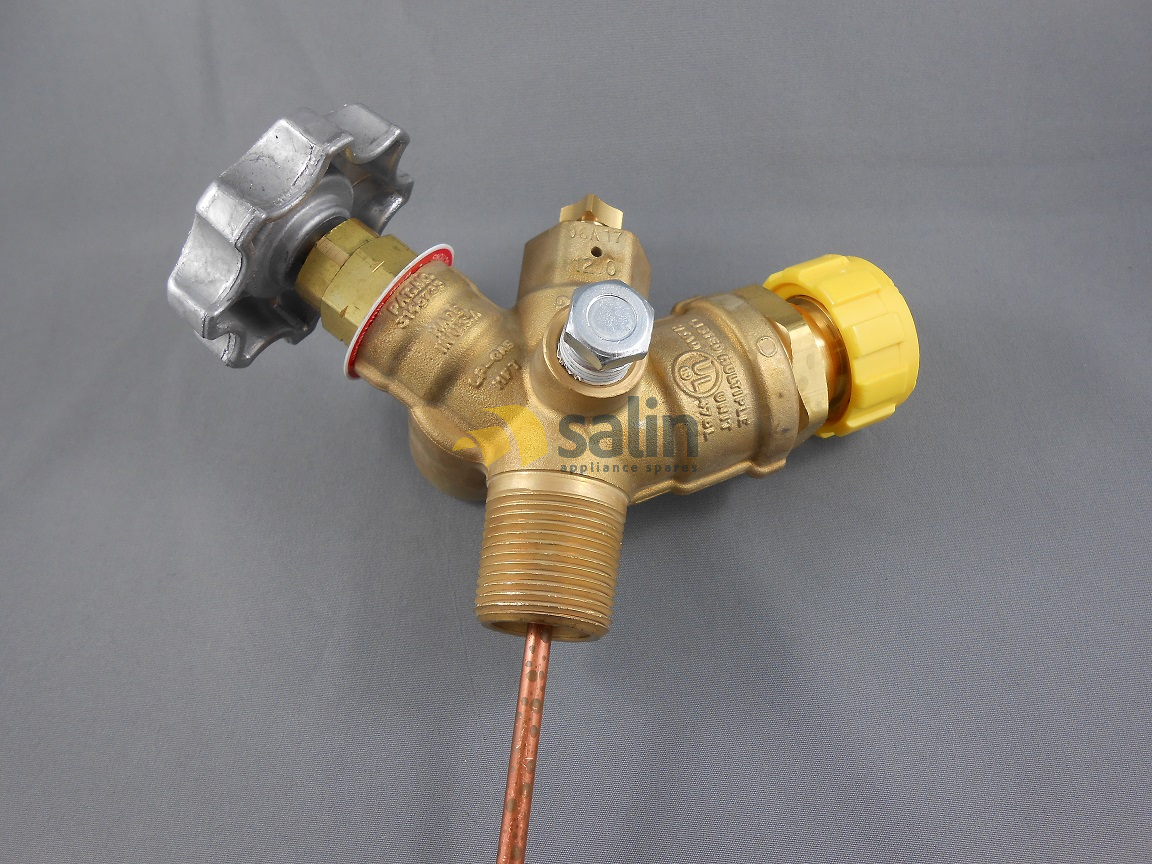

REGO ASME MULTIVALVE FOR VAPOUR WITHDRAWAL

Application

These compact Multivalves® are especially suited for vapor withdrawal of ASME containers where compact groupings of components are necessary. Separate filler valves and pressure relief valves are required.

Features
  • Combines service valve, vapor equalizing valve with excess flow, fixed liquid level gauge and plugged pressure gauge opening in one unit.
  • Rugged, 1” wrenching boss on center column minimizes possible damage during installation.
  • Low profile design extends only 3” above the container boss, allowing use of smaller domes.
  • “Y” shape configuration allows for ease of operation with all valves and gauges easily accessible at all times.
  • Designed for installation of a ⅛” M.NPT pressure gauge or pressure gauge connection. The pressure test port will communicate to the downstream side of the service valve.
  • MultiBonnet® allows quick and easy repair of bonnet.
Materials

Body……………………………………………………………………. Forged Brass
Handwheel…………………………………………………… Aluminum Die Cast
Valve Stems…………………………………………………………………….. Brass
O-Rings…………………………………………………………… Resilient Rubber
Seat Disc (shut-off valve)………………………………………………….. Nylon
Seat Disc (others)……………………………………………… Resilient Rubber

SKU NumberGMC_000136
