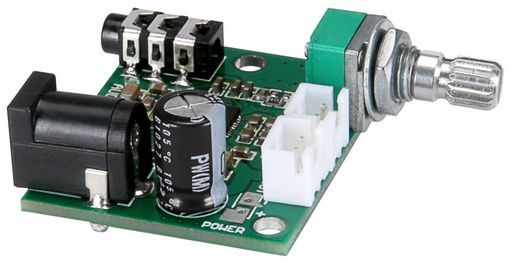

This is a AMPLIFIER BOARD CLASS-D DIY 2X 10W of brand Dayton Audio.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title AMPLIFIER BOARD CLASS-D DIY 2X 10W
Notes STEREO 10W PAM8610 WITH VOLUME This is a high performance compact CMOS digital audio power amplifier operating with 90% efficiency. It ensures high quality sound reproduction and with Class-D amplification, it produces reasonably good high power output for its miniature size. 10Vdc to 16Vdc 4Amax.Suitable for compact DIY project integration2x 10W continuous power outputs @ 8 ohmsCool operation, no heat-sink requiredNo larger than a matchbox, but with very good, clear and crisp outputSize: 33.6mm x 40.3mm x 15mmBuilt-in volume controlHas a 3.5mm stereo audio input socket for Audio input2.1mm x 5.5mm PCB mount DC power socketShort circuit, over-current and thermal protectionFrequency response: 20Hz – 30KHz ; 80dB SNROperating voltage and current: 10VDC – 16VDC, 4A max.
Power2x10W
ManufacturerDayton Audio
SKU NoWES_DAA210_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU WES_DAA210_1
Brand Dayton Audio
