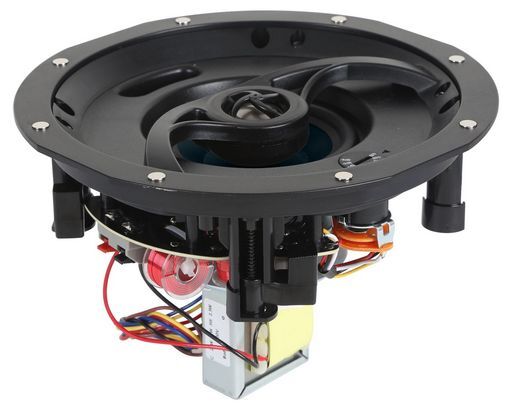

ACCENTO DYNAMICA 8Ω OR 100V TYPE CEILING SPEAKER LOW-PROFILE
TITANIUM DOME TWEETER AND LONG-LIFE MICA-POLYPROPYLENE W
SKU code: WES_ADS4-60MG-T20_3
This is a ACCENTO DYNAMICA 8Ω OR 100V TYPE CEILING SPEAKER LOW-PROFILE of brand Accento Dynamica.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | ACCENTO DYNAMICA 8Ω OR 100V TYPE CEILING SPEAKER LOW-PROFILE |
| Notes | TITANIUM DOME TWEETER AND LONG-LIFE MICA-POLYPROPYLENE WOOFER. SOLD IN SINGLES Super-slim grille with ultra low profile flange of only 5mm. Multiple magnets hold the metal grille securely. Easy to install. Built from strong rigid plastics that are fire retardant to UL-8540T. Quick-install clamp system for 40 to 10mm panel thickness. Long-life driver design with sealed motor system for dust tolerance. It features a 100V line audio transformer with taps for PA installations which can be bypassed for direct 8 ohm input if required.. Premium audio sound optimised with a 6dB crossover and a front facia selectable tweeter attenuator. 20mm Titanium dome tweeter with silk surround above mounted in coaxial configuration for excellent HiFi audio sound. Butyl rubber surround and mica reinforced polypropylene composite cone. Achieves excellent quality full-range audio sound reproduction.100V INPUT: Flexible Installation options for PA installations. 8 Ohm high end cross-over network design and multiple hard-wired 100V multiple Watt Tap Selections.DIRECT 8 OHM INPUT: The 100V line transformer can be bypassed for direct 8 ohm input if required.2-WAY COAXIAL SYSTEM: Suspended 20mm Titanium dome tweeter with silk surround above mounted in coaxial configuration for excellent HiFi audio sound. Tweeter level adjustment.SUPER SLIM GRILLE: Magnetically held speaker grille creates an ultra low profile (5mm) and virtually frameless appearance as well making installation faster. |
| Description | White 4' Single |
| Input | 100V |
| Taps | 2.5W / 5W / 10W / 20W |
| Packaging | Single |
| Colour | White |
| Pmax | 40W |
| Freq. | 96Hz-20kHz |
| Prms | 20W |
| Sens. | 85dB |
| Size | 4' |
| Manufacturer | Accento Dynamica |
| Type | 100V Line |
| Depth | 140mm |
| Dimensions | 140x218mmØ |
| Hole | 185mmØ |
| Page | 5 |
| Price Type | Each |
| Grille | Steel |
| SKU No | WES_ADS4-60MG-T20_3 |
