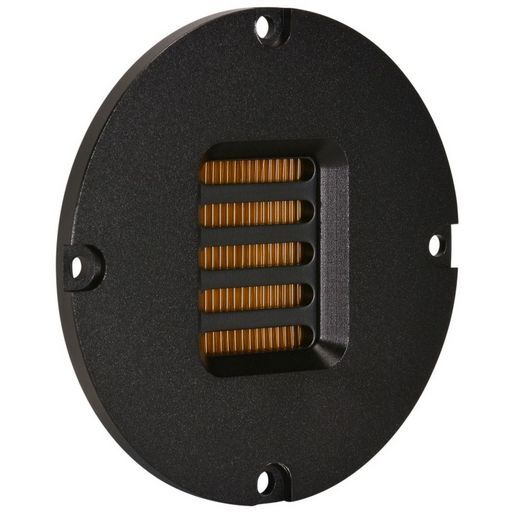

90MM AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO
4 OHM
SKU code: WES_AMT2-4_1
This is a 90MM AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 90MM AIR MOTION TRANSFORMER TWEETER - DAYTON AUDIO |
| Notes | 4 OHM The Dayton Audio AMT2-4 Air Motion Transformer tweeter brings clarity, transient speed, and musical finesse to your design. The tweeter's round faceplate flush mounts into baffles easily, and groundbreaking AMT technology enables high output from such a compact driver.The Dayton Audio AMT2-4 features a round faceplate and compact AMT element, for wide dispersion and overall performance that easily replace dome tweeters in retrofit or new design applications. The sealed rear chamber design of the AMT2-4 eliminates the need for a separate internal chamber in the loudspeaker enclosure. Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.Advanced Air Motion Transformer design squeezes air molecules instead of shoving or crushing themFolded Kapton ribbon diaphragm delivers detailed dynamic outputPowerful, lightweight neodymium magnet structure for low distortion and high efficiencySonically similar to the best metal ribbon and planar tweeters |
| Description | AIR MOTION TRANSFORMER TWEETER |
| Type | AMT |
| Power | 15W |
| Coil | AMT |
| Impedance | 4Ω (Re 3.5Ω) |
| Depth | 28.5mm |
| Sens. | 92.5dB |
| Re | 3.5Ω |
| Qms | 2.92 |
| Qes | N/A |
| Qts | 2.86 |
| Vas | N/A |
| Sd | 8.91 cm² |
| Cms | N/A |
| Fs | 2300Hz |
| Mms | N/A |
| Zn | 4Ω |
| Diam. | 90mmØ |
| Manufacturer | Dayton Audio |
| Prms | 15W |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Inch | 1.5 |
| Size | 1.5' |
| Hole | 65mmØ |
| Series | AMT |
| Price Type | each |
| SKU No | WES_AMT2-4_1 |
