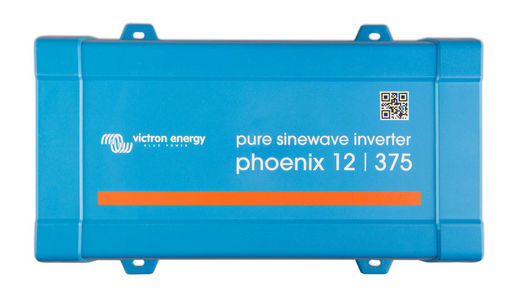

9.2V-17Vdc TO 230Vac PHOENIX INVERTER 375VA
VICTRON VPINV-12/375 VE.DIRECT
SKU code: WES_VPINV-12375_1
This is a 9.2V-17Vdc TO 230Vac PHOENIX INVERTER 375VA of brand Victron Energy.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 9.2V-17Vdc TO 230Vac PHOENIX INVERTER 375VA |
| Notes | VICTRON VPINV-12/375 VE.DIRECT The Victron Phoenix inverter is designed to output pure sine wave AC power which is perfect for sensitive electronics. The VPINV-12/375 supports a 9.2 to 17Vdc input and 230Vac AU/NZ output socket. This inverter includes a VE.Direct communication port which can be connected to a computer using an optional VE.Direct to USB cable (not included), or Apple and Android smart devices using an optional VE.Direct to Bluetooth smart dongle (not included). This allows user to configure low battery voltage alarm trip, low battery voltage cut-off and restart, dynamic cut-off, output voltage, frequency and ECO mode. User can also monitor input and output voltage, % load and alarms from their devices. The inverter features short circuit, overheating, and overload protections. The full bridge plus toroidal transformer topology has proven its reliability over many years.Includes VE.Direct communication port which allows you to connect the inverter to a PC, smartphone or tablet for configuration and monitoring. (Requires VE.Direct to USB cable, or VE.Direct to Bluetooth dongle)Enables you to configure voltage alarm trip and reset levels, voltage cut-off and restart levels, dynamic cut-off, output voltage, frequency and ECO mode settingsVoltage, load levels and alarms monitoringFeatures short circuit, overheating, and overload protectionsThe inverter will switch to standby when the load decreases below a preset value in ECO mode. It will switch on and check every few seconds, adjustable, if the load has increased again.A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.A red and a green LED indicate inverter operation and status of the different protections. |
| Manufacturer | Victron Energy |
| Pmax | 700W |
| Power | 300W |
| V in | 9.2-17Vdc |
| V out | 230Vac |
| Output | 1x AU/NZ AC socket |
| Dimensions | 86x165x260mm |
| SKU No | WES_VPINV-12/375_1 |
