8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoC - CYPRESS

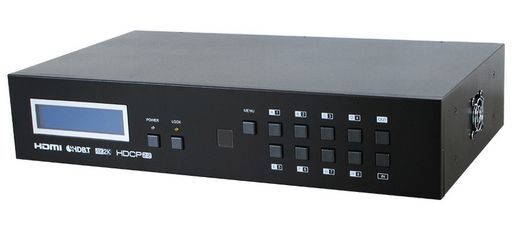

8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoC
SKU code: WES_CMPRO-UA8H8CVPL_1
This is a 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoC - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoC - CYPRESS |
| Notes | 8x8 HDMI OVER HDBaseT MATRIX 4K30 WITH 24V PoC The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3D TV and 3D source. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations. Suitable for Video/TV wall display and control, security surveillance system, commercial advertising and display, etc.HDMI with 4K2K supported, HDCP 2.2 and DVI compliantSupports PC resolution up to WUXGA and HDTV resolution up to 4K2K(3840×2160@24/25/30 Hz & 3840×2160@50/60 Hz with YUV420, 4096×2160@24/25/30 Hz & 4096×2160@50/60 Hz with YUV420)Supports distances up to 60 meters through CAT5e/6/7 cableSupports 3D signal bypassSupports pass-through audio LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master AudioSupports PoC (Power over Cable) on compatible receivers onlySupports bidirectional IR from inputs and output locationsSupports RS-232, remote control, on-panel control and IP control (Telnet/Web GUI)2U size designCompliant with DVI source Compatible Receivers: CH-506RXPL |
| Description | The 8 by 8 HDMI 4K2K Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. of video (resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio and control via IR, RS-232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. |
| Input | 8x HDMI |
| Max Res. | 4K @ 30Hz |
| Output | 8x CAT5e/6/7 |
| Compatible with | CH-506RXPL |
| Manufacturer | Cypress |
| Cable Length | 60M |
| 3D | Yes |
| HDCP | Yes |
| RS232 Extension | Yes |
| IR Extension | Yes |
| PoE | Yes |
| HD Audio | Yes |
| 4K | Yes |
| RS-232 | Yes |
| SKU No | WES_CMPRO-UA8H8CVPL_1 |
