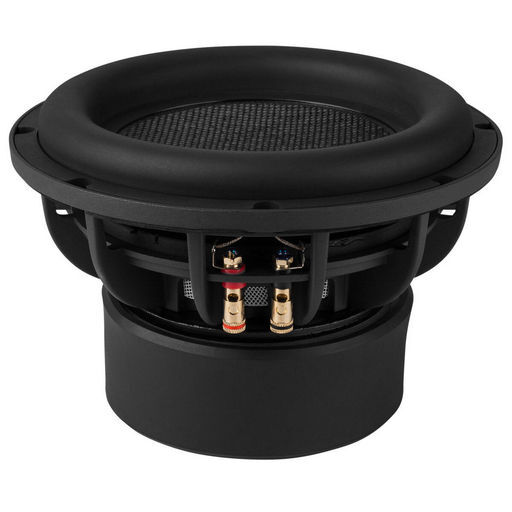

8 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO
8 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO
SKU code: WES_UM8-22_1
This is a 8 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8 ULTIMAX DVC SUBWOOFER - DAYTON AUDIO |
| Notes | Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Optimised for small enclosures and with over 1-1/4 of throw, the UM8-22 8 subwoofer is perfect for providing deep bass without taking up much space. It has dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility. To improve power handling, increase thermal management, and reduce power compression, this speaker features large black anodised formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils. Over 1-1/4 of travel (.67 Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. Tall-boy rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. The thick, one-piece Nomex honeycomb cone is covered with woven, heavy-duty glass fibers creating an ultra-stiff surface that resists deformation. A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for faster response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.16 mm Xmax makes this one of the highest excursion 8 subwoofers on the marketThick, one-piece Nomex honeycomb covered cone with woven heavy-duty glass-fiberTall-boy rubber surround for extra-long linear excursion without reducing cone surface areaDual linear stiffness spiders limit distortion and rocking modes300 watts RMS power handlingBlack anodised aluminium former and black pole improves heat dissipationDual 2 ohm, 2-layer copper voice coils |
| Description | 8' Ultimax DVC Subwoofer 2 Ohms Per Coil |
| Cms | 0.33mm/N |
| Coil | 50.8nnmØ |
| Depth | 119.5mm |
| Diam. | 210mmØ |
| Fs | 31.6Hz |
| Impedance | 2x2Ω (Re 4.2Ω) |
| Impedance (Ohm) | 2+2 ohm |
| Inch | 8 |
| Le | 1.14mH |
| Manufacturer | Dayton Audio |
| Material | Fibreglass |
| Mms | 74.5g |
| Power | 300Wrms |
| Power (RMS) | 200+ Watt |
| Price Type | each |
| Qes | 0.75 |
| Qms | 2.51 |
| Qts | 0.58 |
| QTY | 1 |
| Re | 4.2Ω |
| Sd | 211.2cm² |
| Sens. | 84.2dB |
| Series | Ultimax Series |
| Size | 8' |
| Type | Subwoofer |
| Vas | 21.3L |
| Zn | 2x 2Ω |
| SKU No | WES_UM8-22_1 |
