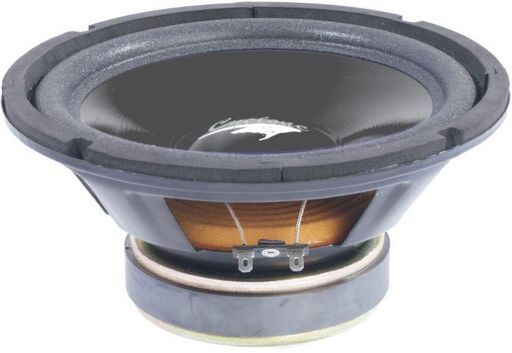

This is a 8” SUBWOOFER - CYCLONE of brand Daichi.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 8” SUBWOOFER - CYCLONE
Notes DOPED CONE 200mm Treated pulp cone for extended low frequency without cone breakup. 2” Aluminium voice coil. Strontium magnet. 80Wrms. Steel Framed.
DescriptionDAICHI 8' SUBWOOFER 4Ω DELUXE
Power160Wmax
Freq.36Hz - 8KHz
Z4Ω (3.9Ω)
Mag.110mm 20 Oz
Sens.88dB
Fo36Hz
Qms5.45
Qes0.59
Qts0.53
Vas46.1L
ManufacturerDaichi
QTY1
Hole185mmØ
Mount190mm
O/D205mm
Diam.205mmØ
Dimensions205mmØ
Re3.9Ω
Fs36Hz
Impedance (Ohm)4 ohm
Zn
Impedance4Ω (Re 3.9Ω)
Power (RMS)51-100 Watt
Inch8
Size8'
Prms80W
SPL88dB
Depth90mm
SeriesCyclone
Price Typeeach
MaterialsPaper Dope
TypeSubwoofer
SKU NoWES_CS80_3
