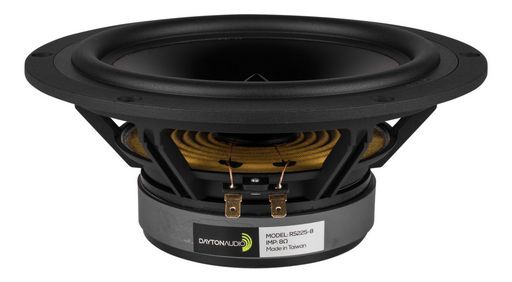

8 REFERENCE SERIES WOOFER - DAYTON
8 REFERENCE SERIES WOOFER - DAYTON
SKU code: WES_RS225-8_1
This is a 8 REFERENCE SERIES WOOFER - DAYTON of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8 REFERENCE SERIES WOOFER - DAYTON |
| Notes | The Dayton Audio Reference Series was conceived with making distortion low in mind. Each speaker was carefully designed and optimised to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry. Dayton Audio Reference Series RS225-4 and RS225-8 8 woofers deliver exceptional clarity, detail, and dynamics and incredibly low distortion.Low-distortion high-excursion motor system with two short-circuit pathsCompliant suspension and rigid black anodised aluminium cone for strong bass performanceHeavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminium phase plug |
| Description | 8' Reference Woofer 8 Ohm |
| Type | Woofer |
| Size | 8' |
| Power | 80W |
| Coil | 38mmØ |
| Impedance | 8Ω (Re 6.5Ω) |
| Depth | 89mm |
| Sens. | 86.8dB |
| Re | 6.5Ω |
| Qms | 1.46 |
| Qes | 0.51 |
| Qts | 0.38 |
| Vas | 56.8L |
| Sd | 149.7cm² |
| Cms | 0.88mm/N |
| Fs | 28.3Hz |
| Mms | 35.8g |
| Zn | 8Ω |
| Le | 0.86mH |
| Diam. | 223mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 8 |
| Series | Reference Series |
| Hole | 184mmØ |
| QTY | 1 |
| Prms | 80W |
| Price Type | each |
| SKU No | WES_RS225-8_1 |
