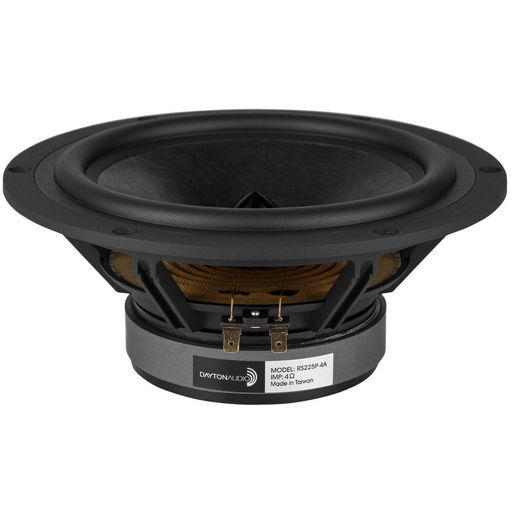

8 REFERENCE SERIES PAPER WOOFER
DAYTON AUDIO
SKU code: WES_RS225P-4A_1
This is a 8 REFERENCE SERIES PAPER WOOFER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8 REFERENCE SERIES PAPER WOOFER |
| Notes | DAYTON AUDIO The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The 8 Reference Series paper woofer use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibres to create an advanced non-woven fibre composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look. Redesigned for a smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.Now with improved frequency response for easier crossover integrationThree-part paper composite diaphragm featuring paper, Kevlar, and glass fibresLow-distortion motor, 6-hole cast frame, rubber surround, and solid aluminium phase plugPerfect for use as a woofer, midwoofer, or dedicated midrange driver92.9 dB sensitivity and 6 mm of excursion |
| Description | 8' Reference Paper Woofer 4 Ohm |
| Cms | 0.71mm/N |
| Coil | 38mmØ |
| Depth | 84mm |
| Diam. | 223mmØ |
| Fs | 37.7Hz |
| Hole | 184mmØ |
| Impedance | 4Ω (Re 3.3Ω) |
| Impedance (Ohm) | 4 ohm |
| Inch | 8 |
| Le | 0.51mH |
| Manufacturer | Dayton Audio |
| Mms | 25g |
| Power | 80W |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Prms | 80W |
| Qes | 0.48 |
| Qms | 1.85 |
| Qts | 0.38 |
| QTY | 1 |
| Re | 3.3Ω |
| Sd | 213.8cm² |
| Sens. | 92.9dB |
| Series | Reference Series |
| Size | 8' |
| Type | Woofer |
| Vas | 45.8L |
| Zn | 4Ω |
| SKU No | WES_RS225P-4A_1 |
