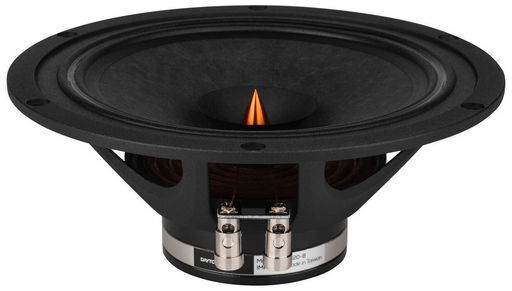

8 POINT SOURCE FULL-RANGE NEO DRIVER
DAYTON AUDIO
SKU code: WES_PS220-8_1
This is a 8 POINT SOURCE FULL-RANGE NEO DRIVER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8 POINT SOURCE FULL-RANGE NEO DRIVER |
| Notes | DAYTON AUDIO The Dayton Audio PS Series drivers features true bass, articulate midrange, and balanced, extended highs. The PS220-8 8 driver's superb resolution and natural sound quality make it a viable option for a wide variety of applications. This speaker's audio performance is complemented by its striking appearance, it looks great in dipole and other open back designs.High sensitivity/minimal distortion, ideal for lower powered amplifiersWhizzer cone and phase plug extend on-axis and off-axis responseSolid bass performance from high excursion capability (4.8mm Xmax)Optimised neodymium magnet provides high motor strengthLow-mass copper clad aluminium voice coilCopper cap and ring on pole piece reduce inductance and distortionLightweight, rigid and well controlled Kevlar reinforced paper cone |
| Description | 8' Point Source Full-Range Neo Driver |
| Cms | 1.41mm/N |
| Coil | 25.4 mmØ |
| Colour | Black |
| Depth | 94mm |
| Diam. | 221.5mmØ |
| Fs | 46.4Hz |
| Impedance | 8Ω (Re 6.2Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 8 |
| Le | 0.73mH |
| Manufacturer | Dayton Audio |
| Mms | 8.4g |
| Power | 40W |
| Power (RMS) | 0-50 Watt |
| Price Type | each |
| Prms | 40W |
| Qes | 0.4 |
| Qms | 5.73 |
| Qts | 0.38 |
| QTY | 1 |
| Re | 6.2Ω |
| Sd | 216.4cm² |
| Sens. | 96.5dB |
| Size | 8' |
| Type | Full-Range |
| Vas | 90.2L |
| Zn | 8Ω |
| Hole | 181mmØ |
| Voice | Aluminum |
| Series | Point Source |
| SKU No | WES_PS220-8_1 |
