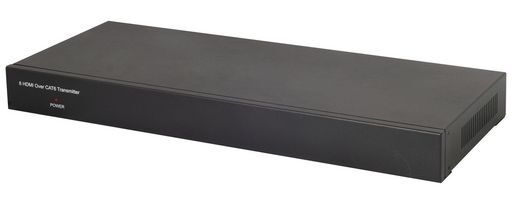

This is a 8 HDMI TO 8 HDBaseT POINT-TO-POINT TRANSMITTER 4K30 - CYPRESS of brand Cypress.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title 8 HDMI TO 8 HDBaseT POINT-TO-POINT TRANSMITTER 4K30 - CYPRESS
Notes UP TO 100M WITH PoC The HDMI over CAT6 Transmitter supports the transmission of up to 100 metres of uncompressed video (up to 1080p@60Hz/36-bit) with multichannel digital audio from up to eight high definition sources to up to eight CAT6 outputs. The unit can be used in conjunction with the 8×8 HDMI matrix (optional) to provide switching control, allowing the display of any source device on any output display. Includes 24V 6.25A(max) PoC power supply.Supports PoE (Power over Ethernet) on compatible receivers onlySupports high bit-rate audio up to 192 kHzSupports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settingsSupports audio up to 7.1Ch, Dolby® TrueHD, DTS-HD Master AudioSupports uncompressed video up to 1080p@60 Hz/36-bitSupports extension up to 80 metres through CAT5e or 100 metres through CAT6/7Supports HDMI 3D and 4Kx2K signal display dependent upon the output display’s EDID settingsSupports HDMI input up to 10 metres at 8-bit resolution or 6 metres at 12-bit resolution1U size design
DescriptionHDBaseT 8 WAY HDMI point to point Transmitter over CAT5/6/7
Input8x HDMI
Output8x CAT5e/6/7
3DYes
HDCPYes
RS232 ExtensionNo
IR ExtensionNo
PoEYes
EthernetNo
Extender CableCAT5e/6/7
HD AudioYes
4KYes
IR-
Max Res.4K @ 30Hz
RS-232-
TypeTransmitter
Compatible withCH-501RX, CH-506RX, CH-506RXWP, CH-507RX, CH-507RXBD, CH-507RXWP, CH-507RXWPBD
ManufacturerCypress
Cable Length100M (@ 1080p)
SKU NoWES_CSI-8H8CVTX_1
