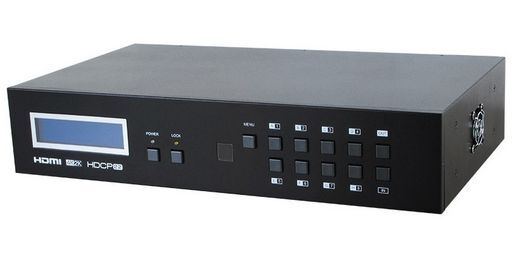

8×8 HDMI MATRIX 4K30 WITH IP CONTROL - CYPRESS
4K2K UHD & HDCP 2.2
SKU code: WES_CMPRO-UA8H8HS_1
This is a 8×8 HDMI MATRIX 4K30 WITH IP CONTROL - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 8×8 HDMI MATRIX 4K30 WITH IP CONTROL - CYPRESS |
| Notes | 4K2K UHD & HDCP 2.2 The 8 by 8 HDMI 4K UHD Matrix is designed to switch and distribute high-definition audio/video (up to 4K2K UHD & HDCP 2.2) and multi-channel digital audio from eight high definition sources to eight HDMI outputs. It supports pass-through of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as supporting 3D content that can be displayed when connecting a 3D TV and 3D source. Additionally, the unit can be controlled via RS-232, IR remote control, IP (Telnet/WebGUI) and on-panel controls.HDMI matrix with 8x HDMI inputs and outputsHDMI with 4K2K supported, HDCP 2.2 and DVI compliantSupports PC resolution up to WUXGA and HDTV resolution up to 4K2K (3840×2160@24/25/30Hz, 3840×2160@50/60Hz with YUV420, 4096×2160@24/25/30Hz and 4096×2160@50/60Hz with YUV420)Supports 3D signal bypassSupports passthrough of high-definition audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master AudioSupports RS-232, IR remote control, on-panel control and IP control (Telnet/WebGUI)2U size designCompliant with DVI source |
| Description | This 8 by 8 HDMI 4K UHD Matrix is designed to switch and distribute high-definition audio/video (up to 4K2K UHD & HDCP 2.2) and multi-channel digital audio from eight high definition sources to eight HDMI outputs. It supports passthrough of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as supporting 3D content that can be displayed when connecting a 3D TV and 3D source. |
| 3D | Yes |
| 4K | Yes |
| ARC | - |
| CEC | - |
| Deep Colour | Yes |
| EDID | Yes |
| HD Audio | Yes |
| HDCP | Yes |
| HEC | - |
| Input | 8x HDMI |
| Output | 8x HDMI |
| Max Res. | 4K @ 30Hz |
| Manufacturer | Cypress |
| SKU No | WES_CMPRO-UA8H8HS_1 |
