7 REFERENCE SERIES WOOFER
DAYTON AUDIO
SKU code: WES_RS180-8_1
This is a 7 REFERENCE SERIES WOOFER of brand Dayton Audio.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | 7 REFERENCE SERIES WOOFER |

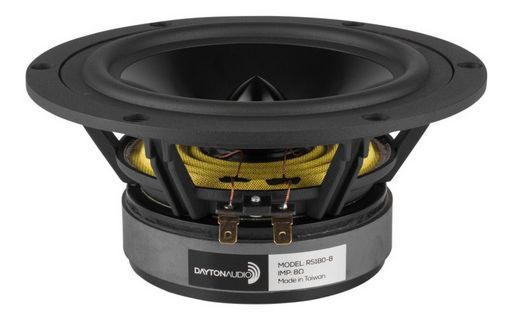

| Notes | DAYTON AUDIO The Dayton Audio 7” Reference Series Woofer utilises a low-distortion motor system with two short-circuit paths and a rigid aluminium cone. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. It features a black anodised cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminium phase plug, rubber magnet boot, and gold spring terminals.Low-distortion high-excursion motor system with two short-circuit pathsCompliant suspension and rigid black anodised aluminium cone for strong bass performanceHeavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminium phase plug |
| Description | 7' Reference Woofer 8 Ohm |
| Type | Woofer |
| Size | 7' |
| Power | 60W |
| Coil | 38mmØ |
| Impedance | 8Ω (Re 6.4Ω) |
| Depth | 81mm |
| Sens. | 87.1dB |
| Re | 6.4Ω |
| Qms | 1.22 |
| Qes | 0.42 |
| Qts | 0.31 |
| Vas | 24.4L |
| Sd | 124.7cm² |
| Cms | 1.12mm/N |
| Fs | 35.7Hz |
| Mms | 17.9g |
| Zn | 8Ω |
| Le | 0.73mH |
| Diam. | 180mmØ |
| Manufacturer | Dayton Audio |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 7 |
| Series | Reference Series |
| Hole | 146mmØ |
| QTY | 1 |
| Prms | 60W |
| Price Type | each |
| SKU No | WES_RS180-8_1 |
